SIR with Time-Varying (Phased) Vaccination

SIR

SIRS

vaccination

intervention timing

reactive

intermediate

Phased and reactive vaccination on an SIR network model, with a bonus endemic-SIRS scenario where the reactive program produces sustained on/off cycling.

Author

Samuel M. Jenness

Published

May 1, 2026

Overview

Every other intervention example in the Gallery applies its intervention from the start of the simulation and never stops. Real public health interventions almost never look like that. Campaigns begin on specific dates, policies are enacted and later relaxed, and reactive programs activate only when disease activity crosses a threshold. This example demonstrates how to implement time-varying interventions in EpiModel: interventions whose activity flips on or off based on the current timestep, on a more complex schedule of windows, or on the current state of the epidemic itself.

The disease model is a standard SIR on a 500-node contact network. A custom vaccinate module reads an activation schedule from the parameter set and applies vaccination only when the schedule says it is active. The same module supports two scheduling styles with no code changes: windowed schedules (one or more time intervals during which vaccination is active) and reactive schedules (activation triggered by prevalence crossing thresholds, with hysteresis to prevent rapid on/off flapping).

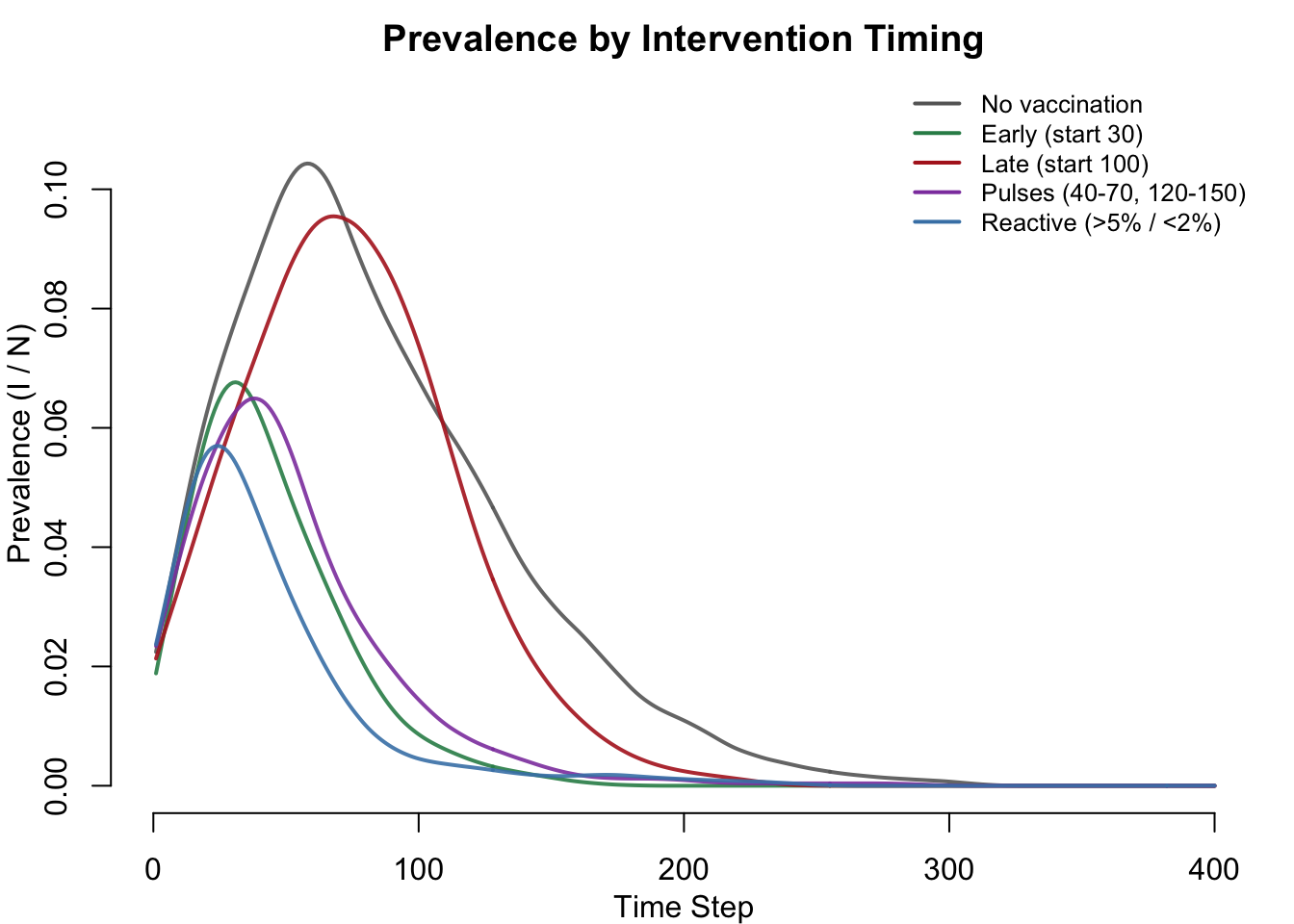

Five closed-SIR scenarios share identical disease parameters and the same per-timestep vaccination rate; they differ only in their activation schedule. Two further scenarios switch on slow waning of natural and vaccine immunity, converting the model to an endemic SIRS setting where the reactive program demonstrates sustained on/off cycling across a long horizon. That endemic comparison is the most striking phenomenon in this example: the same control logic that produces a one-shot mop-up on a closed SIR turns into a closed-loop adaptive intervention when the disease is genuinely endemic.

Download standalone scripts

model.R — Main simulation script
module-fx.R — Custom module functions

Model Structure

Compartment	Label	Description
Susceptible	S	Not infected; at risk of exposure
Infectious	I	Infected and can transmit to contacts
Recovered	R	Recovered from infection; immune (permanent if `rs.rate = 0`)
Vaccine-immune	V	Vaccinated and protected (permanent if `vax.wane = 0`)

flowchart LR
    S["<b>S</b><br/>Susceptible"] -->|"infection<br/>(si.flow)"| I
    I["<b>I</b><br/>Infectious"] -->|"recovery<br/>(ir.flow)"| R["<b>R</b><br/>Recovered"]
    S -->|"vaccination<br/>(sv.flow, schedule-gated)"| V["<b>V</b><br/>Vaccine-Immune"]
    R -.->|"waning<br/>(rs.flow, optional)"| S
    V -.->|"waning<br/>(vs.flow, optional)"| S

    style S fill:#3498db,color:#fff
    style I fill:#e74c3c,color:#fff
    style R fill:#27ae60,color:#fff
    style V fill:#8e44ad,color:#fff

The vaccination flow is the only one whose rate varies with at — everything else behaves like a standard SIR (or SIRS, when waning is enabled). Solid arrows are the closed-SIR flows; dashed arrows are the optional waning paths that switch the model into the endemic regime.

The Time-Varying Intervention Pattern

The pedagogical core of this example is a small, reusable code pattern. Each timestep the module asks a single question: is the intervention active right now? The answer flips a binary vax.active flag, and the vaccination probability is multiplied by that flag.

# Windowed schedule: active if `at` lies inside any (start, end) window
vax.active <- any(at >= vax.starts & at <= vax.ends)

# Reactive schedule: hysteresis-based activation on current prevalence
if (prev.active == 1) {
  vax.active <- current.prev > vax.prev.off
} else {
  vax.active <- current.prev > vax.prev.on
}

The same pattern generalizes to any time-varying or state-dependent intervention: a time-limited treatment program, capacity-constrained testing, seasonal control measures, or an isolation policy triggered when ICU occupancy rises. The disease model never has to know about the schedule; it lives entirely inside the intervention module.

Setup

suppressMessages(library(EpiModel))

nsims <- 5
ncores <- 5
nsteps <- 400
nsteps_endemic <- 1000

Custom Modules

Infection Module

Standard S to I transmission along discordant edges, plus an optional exog.inf.prob parameter that adds an external (exogenous) force of infection. At each timestep every active susceptible has probability exog.inf.prob of being infected by a source outside the modeled network: spillover from an unmodeled reservoir, environmental exposure, or contacts with individuals not represented in the simulated network. This is distinct from importation, which describes already-infected individuals arriving in the population and is properly modeled as an arrivals process in a vital-dynamics module. Here the population is closed and existing susceptibles transition to infectious at a constant background hazard, independent of in-population prevalence. Vaccine-immune individuals (status == "v") are excluded automatically because discord_edgelist() only pairs "s" with "i".

infect <- function(dat, at) {

  active <- get_attr(dat, "active")
  status <- get_attr(dat, "status")
  infTime <- get_attr(dat, "infTime")

  inf.prob <- get_param(dat, "inf.prob")
  act.rate <- get_param(dat, "act.rate")
  exog.inf.prob <- get_param(dat, "exog.inf.prob")

  idsInf <- which(active == 1 & status == "i")
  nActive <- sum(active == 1)
  nElig <- length(idsInf)
  nInf <- 0
  nExog <- 0

  ## Endogenous network transmission ##
  if (nElig > 0 && nElig < nActive) {
1    del <- discord_edgelist(dat, at)
    if (!is.null(del) && nrow(del) > 0) {
      del$transProb <- inf.prob
      del$actRate <- act.rate
      del$finalProb <- 1 - (1 - del$transProb)^del$actRate
      transmit <- rbinom(nrow(del), 1, del$finalProb)
      del <- del[which(transmit == 1), ]
      idsNewInf <- unique(del$sus)
      nInf <- length(idsNewInf)
      if (nInf > 0) {
        status[idsNewInf] <- "i"
        infTime[idsNewInf] <- at
      }
    }
  }

  ## Exogenous force of infection ##
2  if (exog.inf.prob > 0) {
    idsSus <- which(active == 1 & status == "s")
    if (length(idsSus) > 0) {
      vecExog <- which(rbinom(length(idsSus), 1, exog.inf.prob) == 1)
      nExog <- length(vecExog)
      if (nExog > 0) {
        idsExog <- idsSus[vecExog]
        status[idsExog] <- "i"
        infTime[idsExog] <- at
      }
    }
  }

  if (nInf + nExog > 0) {
    dat <- set_attr(dat, "status", status)
    dat <- set_attr(dat, "infTime", infTime)
  }

  dat <- set_epi(dat, "si.flow", at, nInf)
  dat <- set_epi(dat, "exog.flow", at, nExog)
  return(dat)
}

1: discord_edgelist() only considers nodes with status "s" or "i". Vaccine-immune individuals ("v") and recovered individuals ("r") never appear and are therefore protected without any explicit exclusion logic.
2: The exogenous force of infection adds a constant per-step Bernoulli hazard to every susceptible (e.g. spillover from an unmodeled reservoir, environmental exposure, off-network contacts). Setting exog.inf.prob = 0 gives a purely network-driven model. This is not importation, which would describe already-infected individuals arriving in the population and is properly handled by an arrivals module.

Recovery Module

Two flows: I to R at rec.rate, plus an optional R to S waning of natural immunity at rs.rate. When rs.rate = 0 this is standard SIR; when rs.rate > 0 it becomes SIRS.

recov <- function(dat, at) {

  active <- get_attr(dat, "active")
  status <- get_attr(dat, "status")
  rec.rate <- get_param(dat, "rec.rate")
  rs.rate <- get_param(dat, "rs.rate")

  ## I -> R ##
  nRec <- 0
  idsElig <- which(active == 1 & status == "i")
  if (length(idsElig) > 0) {
    vec <- which(rbinom(length(idsElig), 1, rec.rate) == 1)
    if (length(vec) > 0) {
      idsRec <- idsElig[vec]
      nRec <- length(idsRec)
      status[idsRec] <- "r"
    }
  }

  ## R -> S waning (optional, SIRS) ##
  nWane <- 0
1  if (rs.rate > 0) {
    idsEligWane <- which(active == 1 & status == "r")
    if (length(idsEligWane) > 0) {
      vecWane <- which(rbinom(length(idsEligWane), 1, rs.rate) == 1)
      if (length(vecWane) > 0) {
        idsWane <- idsEligWane[vecWane]
        nWane <- length(idsWane)
        status[idsWane] <- "s"
      }
    }
  }

  dat <- set_attr(dat, "status", status)
  dat <- set_epi(dat, "ir.flow", at, nRec)
  dat <- set_epi(dat, "rs.flow", at, nWane)
  dat <- set_epi(dat, "r.num", at, sum(active == 1 & status == "r"))
  return(dat)
}

1: The rs.rate > 0 switch is what converts SIR to SIRS. It’s the single mechanism that lets the disease persist endemically and gives the reactive program something to keep responding to over a long horizon.

Vaccination Module

The schedule-driven module. The first block applies optional vaccine waning (V to S). The second decides whether the program is active at this timestep. The third is a standard all-or-nothing vaccination process, gated by the active flag.

vaccinate <- function(dat, at) {

  active <- get_attr(dat, "active")
  status <- get_attr(dat, "status")
  vax.attempted <- get_attr(dat, "vax.attempted",
                            override.null.error = TRUE)

  vax.rate <- get_param(dat, "vax.rate")
  vax.efficacy <- get_param(dat, "vax.efficacy")
  vax.wane <- get_param(dat, "vax.wane")
  vax.starts <- get_param(dat, "vax.starts")
  vax.ends <- get_param(dat, "vax.ends")
  vax.prev.on <- get_param(dat, "vax.prev.on")
  vax.prev.off <- get_param(dat, "vax.prev.off")

1  if (is.null(vax.attempted)) {
    vax.attempted <- rep(0, length(active))
    dat <- set_attr(dat, "vax.attempted", vax.attempted)
  }

  ## V -> S waning (optional) ##
  # Runs before the activity check so newly waned individuals are eligible
  # for re-vaccination in this same timestep if the program is active.
  nWane <- 0
  if (vax.wane > 0) {
    idsEligWane <- which(active == 1 & status == "v")
    if (length(idsEligWane) > 0) {
      vecWane <- which(rbinom(length(idsEligWane), 1, vax.wane) == 1)
      if (length(vecWane) > 0) {
        idsWane <- idsEligWane[vecWane]
        nWane <- length(idsWane)
        status[idsWane] <- "s"
2        vax.attempted[idsWane] <- 0
      }
    }
  }

  ## Activity check ##
3  if (vax.prev.on > 0) {
    nAct <- sum(active == 1)
    current.prev <- if (nAct > 0) {
      sum(active == 1 & status == "i") / nAct
    } else 0
    prev.active <- 0
    if (at > 2) {
      val <- get_epi(dat, "vax.active", at = at - 1,
                     override.null.error = TRUE)
      if (!is.null(val) && !is.na(val)) prev.active <- val
    }
    if (prev.active == 1) {
4      vax.active <- as.numeric(current.prev > vax.prev.off)
    } else {
      vax.active <- as.numeric(current.prev > vax.prev.on)
    }
  } else {
5    vax.active <- as.numeric(any(at >= vax.starts & at <= vax.ends))
  }

  ## Apply vaccination when active ##
  nVax <- 0
  nImmune <- 0
  if (vax.active == 1 && vax.rate > 0) {
    idsElig <- which(active == 1 & status == "s" & vax.attempted == 0)
    if (length(idsElig) > 0) {
      vecVax <- which(rbinom(length(idsElig), 1, vax.rate) == 1)
      if (length(vecVax) > 0) {
        idsVax <- idsElig[vecVax]
        nVax <- length(idsVax)
        vax.attempted[idsVax] <- 1
6        vecImmune <- which(rbinom(nVax, 1, vax.efficacy) == 1)
        idsImmune <- idsVax[vecImmune]
        nImmune <- length(idsImmune)
        if (nImmune > 0) status[idsImmune] <- "v"
      }
    }
  }

  dat <- set_attr(dat, "status", status)
  dat <- set_attr(dat, "vax.attempted", vax.attempted)

  dat <- set_epi(dat, "vax.active", at, vax.active)
  dat <- set_epi(dat, "vax.flow", at, nVax)
  dat <- set_epi(dat, "sv.flow", at, nImmune)
  dat <- set_epi(dat, "vs.flow", at, nWane)
  dat <- set_epi(dat, "v.num", at, sum(active == 1 & status == "v"))
  return(dat)
}

1: Lazy initialization of the per-node vax.attempted flag on the module’s first call.
2: When a vaccinated individual’s protection wanes, reset their attempted flag so they’re eligible to be re-vaccinated by future activations.
3: Reactive mode is selected by setting vax.prev.on > 0. Otherwise the module falls back to the windowed schedule.
4: Hysteresis. If currently active, stay active until prevalence drops below the lower threshold. If currently inactive, stay inactive until prevalence rises above the upper threshold. This prevents rapid on/off toggling near a single threshold.
5: Vectorized window check. Parallel vectors of starts and ends mean the same line handles a single campaign, a bounded short campaign, or arbitrarily many pulses.
6: All-or-nothing protection. Each vaccinated individual becomes immune with probability vax.efficacy. Unprotected vaccinees stay susceptible but their vax.attempted flag is set so they won’t be re-vaccinated until their protection (if any) wanes.

Network Model

n <- 500
nw <- network_initialize(n)

formation <- ~edges
1target.stats <- c(round(1.5 * n / 2))

coef.diss <- dissolution_coefs(dissolution = ~offset(edges), duration = 60)
est <- netest(nw, formation, target.stats, coef.diss)

1: Mean degree = 1.5 (375 edges across 500 nodes). High enough that transmission isn’t bottlenecked by isolation, low enough that the dynamics remain clean. The intervention timing is the focus, not the network.

Network Diagnostics

dx <- netdx(est, nsims = nsims, ncores = ncores, nsteps = nsteps,
            nwstats.formula = ~edges + degree(0:3))


Network Diagnostics
-----------------------
- Simulating 5 networks
- Calculating formation statistics

print(dx)

EpiModel Network Diagnostics
=======================
Diagnostic Method: Dynamic
Simulations: 5
Time Steps per Sim: 400

Formation Diagnostics
-----------------------
        Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges      375  375.766    0.204  3.293   0.233         8.151        18.472
degree0     NA  111.998       NA  1.554      NA         5.539        10.538
degree1     NA  166.922       NA  1.280      NA         2.847        10.636
degree2     NA  123.921       NA  0.804      NA         3.121         8.967
degree3     NA   63.764       NA  0.841      NA         1.555         7.946

Duration Diagnostics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges     60   59.225   -1.292  0.544  -1.424         1.492         2.983

Dissolution Diagnostics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges  0.017    0.017   -0.225      0  -0.307             0         0.007

plot(dx)

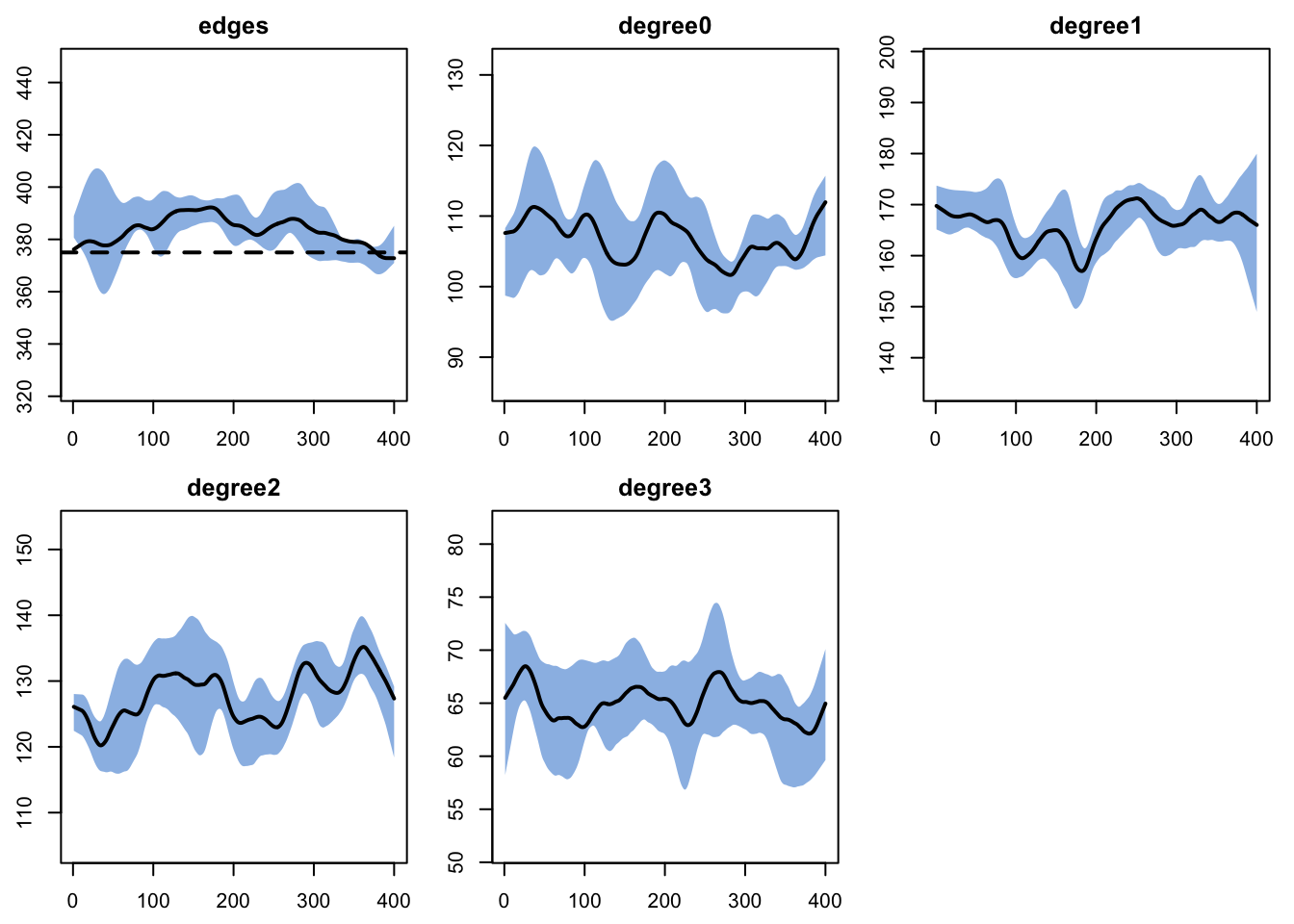

Figure 1: Network diagnostic plots verifying the simulated network reproduces target statistics for edges and degree distribution.

Epidemic Simulation

Control Settings

init <- init.net(i.num = 10)

control <- control.net(
  type = NULL,
  nsims = nsims,
  ncores = ncores,
  nsteps = nsteps,
  infection.FUN = infect,
  recovery.FUN = recov,
1  vaccinate.FUN = vaccinate,
  verbose = FALSE
)

1: vaccinate.FUN is a custom module slot. Any name ending in .FUN can be passed to control.net() and EpiModel will splice it into the default module pipeline.

Base Parameters

All scenarios share the same disease parameters. The base parameter set holds defaults for every parameter the modules read; per-scenario overrides are applied via the scenarios API in the next section. vax.starts and vax.ends are length-2 vectors so the pulse scenario can express two activation windows via the _N vector-position suffix on the scenarios data frame.

param_base <- param.net(
  inf.prob = 0.10,
  act.rate = 1,
  rec.rate = 0.04,
1  rs.rate = 0,
  exog.inf.prob = 0,
  vax.rate = 0.05,
  vax.efficacy = 0.9,
2  vax.wane = 0,
  vax.starts = c(-1, -1),
  vax.ends = c(-1, -1),
  vax.prev.on = -1,
  vax.prev.off = -1
)

1: rs.rate = 0 keeps the model as standard SIR. Setting it positive switches on R-to-S waning (SIRS), which sustains an endemic equilibrium.
2: vax.wane = 0 keeps vaccine immunity permanent. Setting it positive lets vaccinated individuals return to the susceptible pool over time.

Closed-SIR Scenarios

Five scenarios share identical disease parameters and differ only in the activation schedule. The disease burns out as a single wave. Each scenario is one row in a flat data frame; the _1 and _2 columns encode positions of the length-2 vector parameters (an unused window position takes -1).

scenarios_sir.df <- data.frame(
  .scenario.id = c("none", "early", "late",  "pulse", "react"),
  .at          = 0,
  vax.rate     = c(0,      0.05,    0.05,    0.05,    0.05),
  vax.starts_1 = c(-1,     30,      100,     40,      -1),
  vax.starts_2 = c(-1,     -1,      -1,      120,     -1),
  vax.ends_1   = c(-1,     nsteps,  nsteps,  70,      -1),
  vax.ends_2   = c(-1,     -1,      -1,      150,     -1),
  vax.prev.on  = c(-1,     -1,      -1,      -1,      0.05),
  vax.prev.off = c(-1,     -1,      -1,      -1,      0.02)
)
scenarios_sir.list <- create_scenario_list(scenarios_sir.df)

sims <- list()
for (scn in scenarios_sir.list) {
  sims[[scn$id]] <- netsim(est, use_scenario(param_base, scn),
                           init, control)
}

Endemic SIRS Scenarios

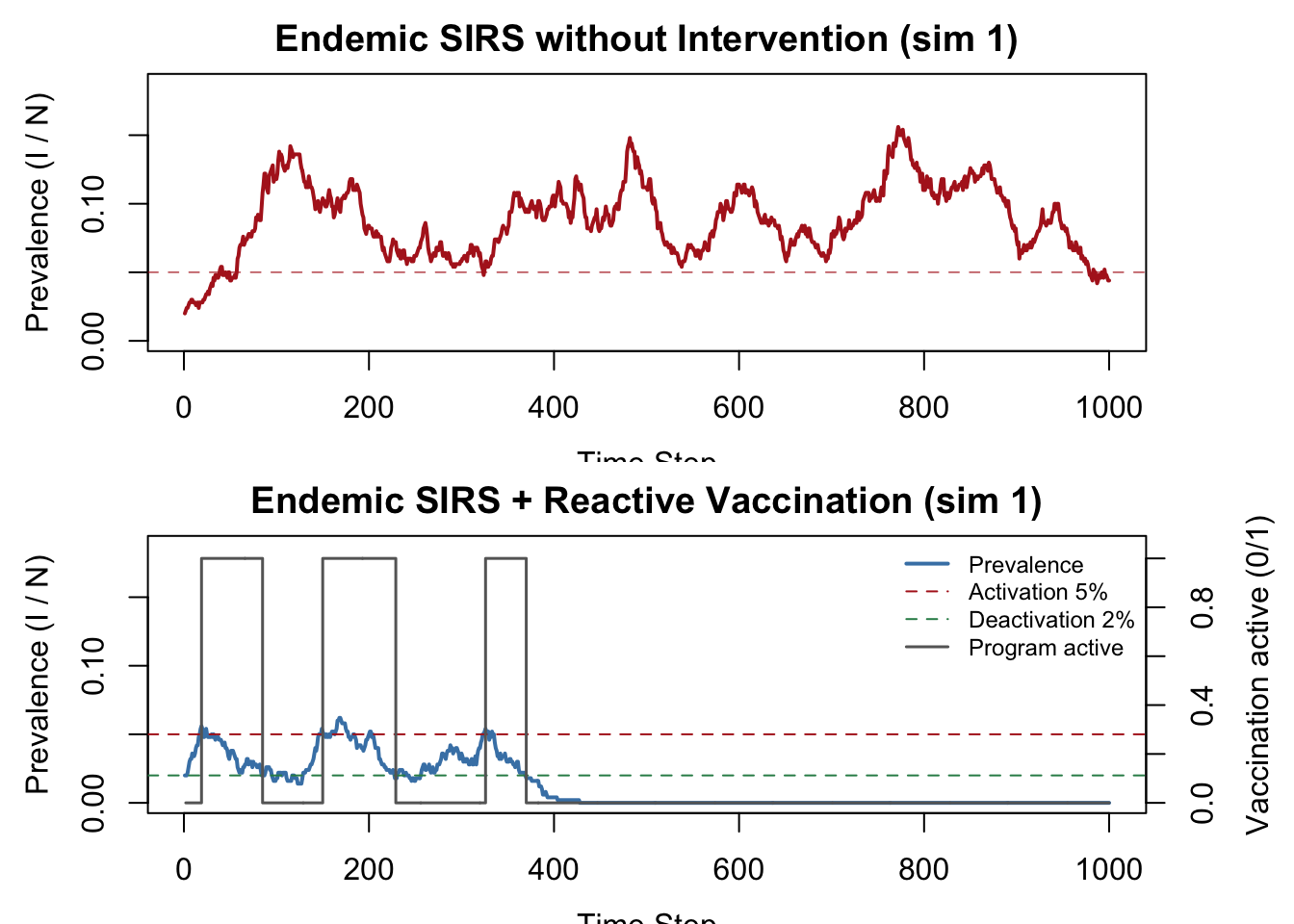

Switching on rs.rate (natural immunity waning) and vax.wane (vaccine immunity waning) converts the model to a SIRS setting. The disease no longer burns out as a single wave; instead it settles into a sustained endemic equilibrium, and the reactive program acquires something to do over a long horizon.

control_endemic <- control.net(
  type = NULL,
  nsims = nsims,
  ncores = ncores,
  nsteps = nsteps_endemic,
  infection.FUN = infect,
  recovery.FUN = recov,
  vaccinate.FUN = vaccinate,
  verbose = FALSE
)

scenarios_endemic.df <- data.frame(
  .scenario.id = c("endemic_none", "endemic_react"),
  .at          = 0,
  vax.rate     = c(0,      0.07),
  rs.rate      = c(0.015,  0.015),
  vax.wane     = c(0.03,   0.03),
  vax.prev.on  = c(-1,     0.05),
  vax.prev.off = c(-1,     0.02)
)
scenarios_endemic.list <- create_scenario_list(scenarios_endemic.df)

sims_endemic <- list()
for (scn in scenarios_endemic.list) {
  sims_endemic[[scn$id]] <- netsim(est, use_scenario(param_base, scn),
                                   init, control_endemic)
}
sim_endemic_none <- sims_endemic[["endemic_none"]]
sim_endemic_react <- sims_endemic[["endemic_react"]]

Analysis

labels <- c(none = "No vaccination",
            early = "Early (start 30)",
            late = "Late (start 100)",
            pulse = "Pulses (40-70, 120-150)",
            react = "Reactive (>5% / <2%)")
cols <- c(none = "gray40", early = "seagreen", late = "firebrick",
          pulse = "#8e44ad", react = "steelblue")
sims <- lapply(sims, function(s) mutate_epi(s, prev = i.num / num))

Prevalence by Intervention Timing

Same disease, same per-step vaccination rate, different schedules. Early and Reactive both clip the epidemic peak; Late only mops up after the peak has passed; Pulses produce a knock-down/rebound shape as vaccination switches on and off.

par(mfrow = c(1, 1), mar = c(3, 3, 2, 1), mgp = c(2, 1, 0))
plot(sims$none, y = "prev",
     main = "Prevalence by Intervention Timing",
     ylab = "Prevalence (I / N)", xlab = "Time Step",
     mean.col = cols["none"], mean.lwd = 2, mean.smooth = TRUE,
     qnts = FALSE, legend = FALSE)
for (k in c("early", "late", "pulse", "react")) {
  plot(sims[[k]], y = "prev",
       mean.col = cols[k], mean.lwd = 2, mean.smooth = TRUE,
       qnts = FALSE, legend = FALSE, add = TRUE)
}
legend("topright", legend = labels, col = cols, lwd = 2, bty = "n",
       cex = 0.8)

Figure 2: Prevalence over time for the five closed-SIR scenarios. The Early and Reactive curves clip the peak; the Late curve tracks the no-intervention curve until step 100 and then mops up; the Pulses curve shows two distinct interventions.

Disease Burden and Per-Dose Efficiency

The cumulative-burden bar chart shows the Early vs. Late contrast clearly. The per-dose efficiency plot tells a complementary story: the Reactive scenario uses far fewer doses to achieve a comparable reduction, and ends up with the highest infections averted per dose of any scenario.

cum_inf <- sapply(sims, function(s) {
  df <- as.data.frame(s)
  mean(tapply(df$si.flow, df$sim, sum, na.rm = TRUE))
})
total_vax <- sapply(sims, function(s) {
  df <- as.data.frame(s)
  mean(tapply(df$vax.flow, df$sim, sum, na.rm = TRUE))
})
averted <- cum_inf["none"] - cum_inf
avert_per_dose <- ifelse(total_vax > 0, averted / total_vax, NA)

par(mfrow = c(1, 2), mar = c(7, 4, 2, 1), mgp = c(2.5, 1, 0))
bp <- barplot(cum_inf, col = cols, las = 2,
              ylab = "Cumulative infections",
              main = "Disease Burden", names.arg = labels,
              cex.names = 0.8, ylim = c(0, max(cum_inf) * 1.15))
text(bp, cum_inf + max(cum_inf) * 0.03, round(cum_inf),
     cex = 0.8, font = 2)

apd_plot <- avert_per_dose
apd_plot[is.na(apd_plot)] <- 0
bp2 <- barplot(apd_plot, col = cols, las = 2,
               ylab = "Infections averted per dose",
               main = "Per-Dose Efficiency", names.arg = labels,
               cex.names = 0.8,
               ylim = c(0, max(apd_plot, na.rm = TRUE) * 1.15 + 0.01))
text(bp2, apd_plot + max(apd_plot, na.rm = TRUE) * 0.03,
     ifelse(is.na(avert_per_dose), "n/a", sprintf("%.2f", apd_plot)),
     cex = 0.8, font = 2)

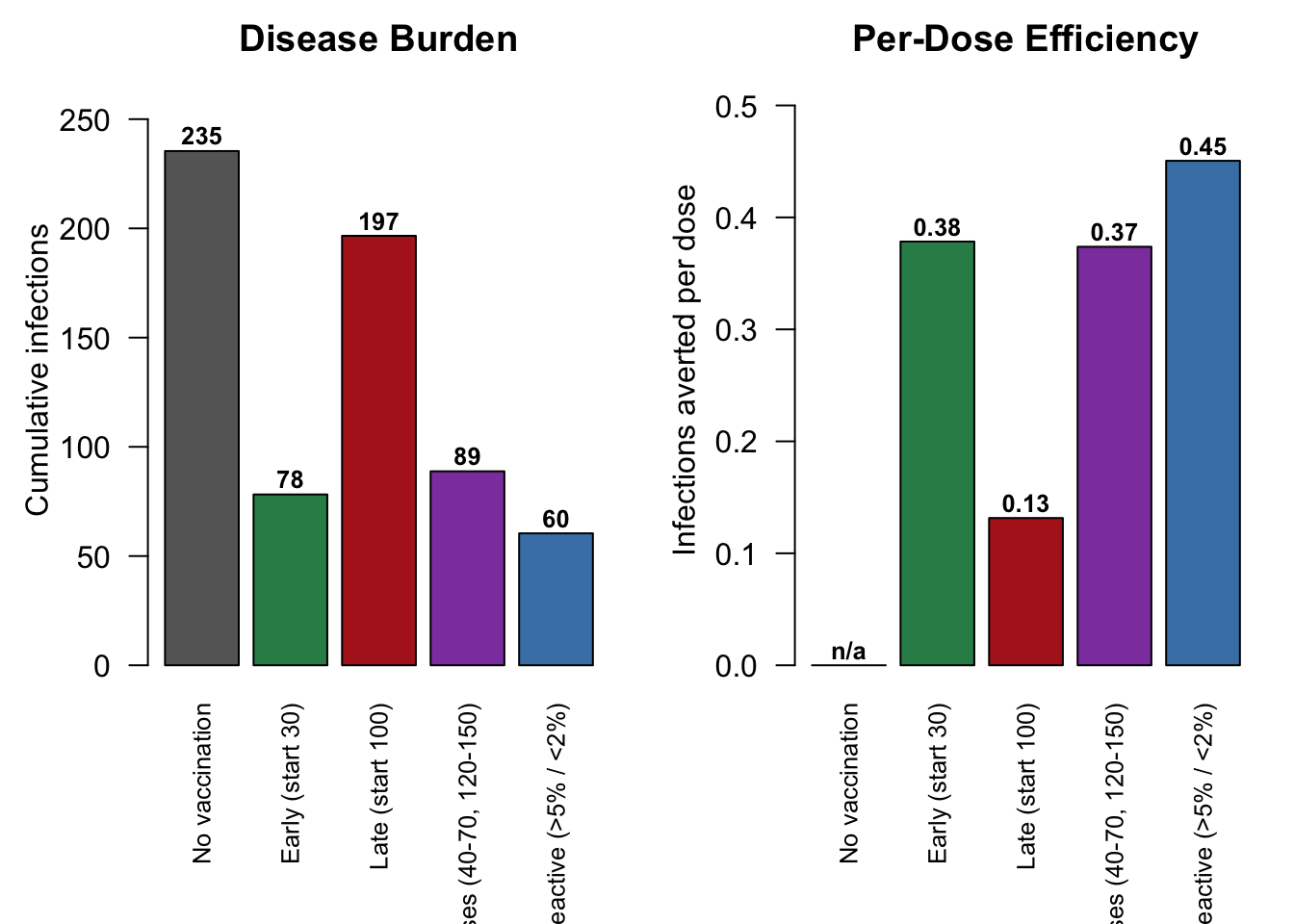

Figure 3: Left: cumulative new infections by scenario. Right: infections averted per vaccine dose — the Reactive scenario achieves the highest per-dose efficiency by using doses only when prevalence is rising.

Endemic Comparison: Sustained Reactive Cycling

This is the headline phenomenon of the example. The top panel shows the SIRS dynamics with no intervention: a sustained endemic equilibrium that oscillates around the 5% activation threshold for the full simulation horizon. The bottom panel shows the same dynamics with the reactive program added: vaccination toggles on and off many times, suppressing each rising wave below the threshold and standing down when prevalence falls.

A single representative simulation is plotted because averaging across simulations smooths the binary on/off activity flag into a fractional value and hides the cycling.

sim_endemic_none <- mutate_epi(sim_endemic_none, prev = i.num / num)
sim_endemic_react <- mutate_epi(sim_endemic_react, prev = i.num / num)
df_n1 <- subset(as.data.frame(sim_endemic_none), sim == 1)
df_r1 <- subset(as.data.frame(sim_endemic_react), sim == 1)
ymax <- max(df_n1$i.num / df_n1$num, na.rm = TRUE) * 1.2

par(mfrow = c(2, 1), mar = c(3, 4, 2, 4), mgp = c(2.5, 1, 0))
plot(df_n1$time, df_n1$prev, type = "l", lwd = 2, col = "firebrick",
     xlab = "Time Step", ylab = "Prevalence (I / N)",
     main = "Endemic SIRS without Intervention (sim 1)",
     ylim = c(0, ymax))
abline(h = 0.05, lty = 2, col = "firebrick", lwd = 0.6)

plot(df_r1$time, df_r1$prev, type = "l", lwd = 2, col = "steelblue",
     xlab = "Time Step", ylab = "Prevalence (I / N)",
     main = "Endemic SIRS + Reactive Vaccination (sim 1)",
     ylim = c(0, ymax))
abline(h = 0.05, lty = 2, col = "firebrick")
abline(h = 0.02, lty = 2, col = "seagreen")
par(new = TRUE)
plot(df_r1$time, df_r1$vax.active, type = "s", lwd = 1.5,
     col = "gray40", axes = FALSE, xlab = "", ylab = "",
     ylim = c(0, 1.05))
axis(4)
mtext("Vaccination active (0/1)", side = 4, line = 2.5)
legend("topright",
       legend = c("Prevalence", "Activation 5%",
                  "Deactivation 2%", "Program active"),
       col = c("steelblue", "firebrick", "seagreen", "gray40"),
       lty = c(1, 2, 2, 1), lwd = c(2, 1, 1, 1.5), bty = "n",
       cex = 0.75)

Figure 4: Endemic SIRS dynamics with and without the reactive vaccination program (single sim, 1000 timesteps). Top: sustained endemic oscillations without intervention. Bottom: reactive vaccination produces sustained on/off cycling that keeps prevalence below the activation threshold.

Summary Table

final_v <- sapply(sims, function(s) {
  df <- as.data.frame(s)
  round(mean(df$v.num[df$time == max(df$time)], na.rm = TRUE))
})
pct_averted <- ifelse(names(averted) == "none", "--",
                      paste0(round(averted / cum_inf["none"] * 100), "%"))
apd_str <- ifelse(is.na(avert_per_dose), "--",
                  sprintf("%.2f", avert_per_dose))

knitr::kable(data.frame(
  Scenario = labels,
  Cum_inf = round(cum_inf),
  Averted = ifelse(names(averted) == "none", 0, round(averted)),
  Pct_averted = pct_averted,
  Doses = round(total_vax),
  Averted_per_dose = apd_str,
  Vacc_immune_end = final_v,
  row.names = NULL
))

Table 1

Scenario	Cum_inf	Averted	Pct_averted	Doses	Averted_per_dose	Vacc_immune_end
No vaccination	242	0	–	0	–	0
Early (start 30)	74	167	69%	419	0.40	382
Late (start 100)	172	69	29%	320	0.22	287
Pulses (40-70, 120-150)	94	148	61%	382	0.39	343
Reactive (>5% / <2%)	80	162	67%	317	0.51	285

Timing Sensitivity Sweep

Sweeping the campaign start time from 0 to 200 traces a dose-response style curve for when to deploy. Below about timestep 60, the marginal benefit of a one-step delay is small; above that, the curve drops sharply as the campaign begins to miss the bulk of the epidemic.

sweep_starts <- seq(0, 200, by = 20)
sweep.df <- data.frame(
  .scenario.id = paste0("start_", sweep_starts),
  .at          = 0,
  vax.starts_1 = sweep_starts,
  vax.starts_2 = -1,
  vax.ends_1   = nsteps,
  vax.ends_2   = -1
)
sweep.list <- create_scenario_list(sweep.df)
sweep_cum <- numeric(length(sweep.list))
for (i in seq_along(sweep.list)) {
  s <- netsim(est, use_scenario(param_base, sweep.list[[i]]),
              init, control)
  df <- as.data.frame(s)
  sweep_cum[i] <- mean(tapply(df$si.flow, df$sim, sum, na.rm = TRUE))
}
sweep_pct <- 100 * (cum_inf["none"] - sweep_cum) / cum_inf["none"]

par(mfrow = c(1, 2), mar = c(3.5, 4, 2, 1), mgp = c(2.4, 1, 0))
plot(sweep_starts, sweep_cum, type = "b", pch = 19, lwd = 2,
     col = "steelblue", xlab = "Campaign start timestep",
     ylab = "Cumulative infections",
     main = "Burden vs. Start Time")
abline(h = cum_inf["none"], lty = 2, col = "gray50")
plot(sweep_starts, sweep_pct, type = "b", pch = 19, lwd = 2,
     col = "seagreen", xlab = "Campaign start timestep",
     ylab = "% infections averted",
     main = "Benefit by Start Time", ylim = c(0, 100))

Note

The sweep adds ~1 minute of runtime on a laptop (11 simulations at nsteps = 400, nsims = 5). The chunk is set with eval: false so the rendered page uses the figure baked in via freeze: auto. To run it yourself, set eval: true (or paste into your R session) — the included model.R runs it under if (interactive()).

Parameters

Disease

Parameter	Description	Default
`inf.prob`	Per-act transmission probability	0.10
`act.rate`	Acts per partnership per timestep	1
`rec.rate`	Per-timestep recovery rate (mean infectious ~25)	0.04
`rs.rate`	R-to-S waning rate (`0` = SIR; `> 0` = SIRS)	0
`exog.inf.prob`	Per-S probability of exogenous infection per step	0

Vaccination

Parameter	Description	Default
`vax.rate`	Per-S vaccination probability per active timestep	0.05
`vax.efficacy`	All-or-nothing protection probability	0.9
`vax.wane`	V-to-S waning rate (`0` = permanent vaccine immunity)	0

Schedule

Parameter	Description	Disabled
`vax.starts`	Vector of window start timesteps	`-1`
`vax.ends`	Vector of window end timesteps	`-1`
`vax.prev.on`	Reactive activation threshold	`-1`
`vax.prev.off`	Reactive deactivation threshold	`-1`

Reactive mode is selected when vax.prev.on > 0. Otherwise the module uses the windowed schedule.

Network

Parameter	Description	Default
Population size	Number of nodes	500
Target edges	Mean concurrent partnerships	375 (mean degree = 1.5)
Partnership duration	Mean edge duration (timesteps)	60

Module Execution Order

resim_nets -> summary_nets -> infection -> recovery -> vaccinate -> nwupdate -> prevalence

EpiModel’s default pipeline. Our three custom modules (infect, recov, vaccinate) replace the corresponding built-in slots; the rest are EpiModel built-ins. The built-in prevalence.net runs last and fills in s.num, i.num, and num from the updated status vector.

Next Steps

Combine timing with a leaky vaccine by porting the schedule pattern to the leaky-vaccine module — see SEIRS with Leaky Vaccination.
Phase a testing or treatment intervention instead of vaccination. The same windowed and reactive logic can wrap any rate parameter — see Test and Treat Intervention.
Time-vary the disease parameters themselves, e.g. a seasonal inf.prob, by applying the same at-dependent gate inside the infection module.
Combine windowed and reactive logic: a planned campaign that can be extended if prevalence remains above a threshold.
Layer onto a model with vital dynamics so vaccination must keep up with the inflow of new susceptibles — see SEIR with AON Vaccination.

--- title: "SIR with Time-Varying (Phased) Vaccination" description: "Phased and reactive vaccination on an SIR network model, with a bonus endemic-SIRS scenario where the reactive program produces sustained on/off cycling." author: "Samuel M. Jenness" date: "2026-05-01" categories: [SIR, SIRS, vaccination, intervention timing, reactive, intermediate] order: 6 image: thumbnail.png --- ## Overview Every other intervention example in the Gallery applies its intervention from the start of the simulation and never stops. Real public health interventions almost never look like that. Campaigns begin on specific dates, policies are enacted and later relaxed, and reactive programs activate only when disease activity crosses a threshold. This example demonstrates how to implement **time-varying interventions** in EpiModel: interventions whose activity flips on or off based on the current timestep, on a more complex schedule of windows, or on the current state of the epidemic itself. The disease model is a standard SIR on a 500-node contact network. A custom `vaccinate` module reads an **activation schedule** from the parameter set and applies vaccination only when the schedule says it is active. The same module supports two scheduling styles with no code changes: **windowed** schedules (one or more time intervals during which vaccination is active) and **reactive** schedules (activation triggered by prevalence crossing thresholds, with hysteresis to prevent rapid on/off flapping). Five closed-SIR scenarios share identical disease parameters and the same per-timestep vaccination rate; they differ only in their activation schedule. Two further scenarios switch on slow waning of natural and vaccine immunity, converting the model to an endemic SIRS setting where the **reactive program demonstrates sustained on/off cycling** across a long horizon. That endemic comparison is the most striking phenomenon in this example: the same control logic that produces a one-shot mop-up on a closed SIR turns into a closed-loop adaptive intervention when the disease is genuinely endemic. ::: {.callout-tip} ## Download standalone scripts - [model.R](model.R) --- Main simulation script - [module-fx.R](module-fx.R) --- Custom module functions ::: ## Model Structure | Compartment | Label | Description | |-------------|-------|-------------| | Susceptible | **S** | Not infected; at risk of exposure | | Infectious | **I** | Infected and can transmit to contacts | | Recovered | **R** | Recovered from infection; immune (permanent if `rs.rate = 0`) | | Vaccine-immune | **V** | Vaccinated and protected (permanent if `vax.wane = 0`) | ```{mermaid} %%| echo: false flowchart LR S["S Susceptible"] -->|"infection (si.flow)"| I I["I Infectious"] -->|"recovery (ir.flow)"| R["R Recovered"] S -->|"vaccination (sv.flow, schedule-gated)"| V["V Vaccine-Immune"] R -.->|"waning (rs.flow, optional)"| S V -.->|"waning (vs.flow, optional)"| S style S fill:#3498db,color:#fff style I fill:#e74c3c,color:#fff style R fill:#27ae60,color:#fff style V fill:#8e44ad,color:#fff ``` The vaccination flow is the only one whose rate varies with `at` --- everything else behaves like a standard SIR (or SIRS, when waning is enabled). Solid arrows are the closed-SIR flows; dashed arrows are the optional waning paths that switch the model into the endemic regime. ## The Time-Varying Intervention Pattern The pedagogical core of this example is a small, reusable code pattern. Each timestep the module asks a single question: *is the intervention active right now?* The answer flips a binary `vax.active` flag, and the vaccination probability is multiplied by that flag. ```r # Windowed schedule: active if `at` lies inside any (start, end) window vax.active <- any(at >= vax.starts & at <= vax.ends) # Reactive schedule: hysteresis-based activation on current prevalence if (prev.active == 1) { vax.active <- current.prev > vax.prev.off } else { vax.active <- current.prev > vax.prev.on } ``` The same pattern generalizes to any time-varying or state-dependent intervention: a time-limited treatment program, capacity-constrained testing, seasonal control measures, or an isolation policy triggered when ICU occupancy rises. The disease model never has to know about the schedule; it lives entirely inside the intervention module. ## Setup ```{r} #| label: setup suppressMessages(library(EpiModel)) nsims <- 5 ncores <- 5 nsteps <- 400 nsteps_endemic <- 1000 ``` ## Custom Modules ### Infection Module Standard S to I transmission along discordant edges, plus an optional `exog.inf.prob` parameter that adds an **external (exogenous) force of infection**. At each timestep every active susceptible has probability `exog.inf.prob` of being infected by a source outside the modeled network: spillover from an unmodeled reservoir, environmental exposure, or contacts with individuals not represented in the simulated network. This is distinct from *importation*, which describes already-infected individuals arriving in the population and is properly modeled as an arrivals process in a vital-dynamics module. Here the population is closed and existing susceptibles transition to infectious at a constant background hazard, independent of in-population prevalence. Vaccine-immune individuals (`status == "v"`) are excluded automatically because `discord_edgelist()` only pairs `"s"` with `"i"`. ```{r} #| label: infection-module infect <- function(dat, at) { active <- get_attr(dat, "active") status <- get_attr(dat, "status") infTime <- get_attr(dat, "infTime") inf.prob <- get_param(dat, "inf.prob") act.rate <- get_param(dat, "act.rate") exog.inf.prob <- get_param(dat, "exog.inf.prob") idsInf <- which(active == 1 & status == "i") nActive <- sum(active == 1) nElig <- length(idsInf) nInf <- 0 nExog <- 0 ## Endogenous network transmission ## if (nElig > 0 && nElig < nActive) { del <- discord_edgelist(dat, at) # <1> if (!is.null(del) && nrow(del) > 0) { del$transProb <- inf.prob del$actRate <- act.rate del$finalProb <- 1 - (1 - del$transProb)^del$actRate transmit <- rbinom(nrow(del), 1, del$finalProb) del <- del[which(transmit == 1), ] idsNewInf <- unique(del$sus) nInf <- length(idsNewInf) if (nInf > 0) { status[idsNewInf] <- "i" infTime[idsNewInf] <- at } } } ## Exogenous force of infection ## if (exog.inf.prob > 0) { # <2> idsSus <- which(active == 1 & status == "s") if (length(idsSus) > 0) { vecExog <- which(rbinom(length(idsSus), 1, exog.inf.prob) == 1) nExog <- length(vecExog) if (nExog > 0) { idsExog <- idsSus[vecExog] status[idsExog] <- "i" infTime[idsExog] <- at } } } if (nInf + nExog > 0) { dat <- set_attr(dat, "status", status) dat <- set_attr(dat, "infTime", infTime) } dat <- set_epi(dat, "si.flow", at, nInf) dat <- set_epi(dat, "exog.flow", at, nExog) return(dat) } ``` 1. `discord_edgelist()` only considers nodes with status `"s"` or `"i"`. Vaccine-immune individuals (`"v"`) and recovered individuals (`"r"`) never appear and are therefore protected without any explicit exclusion logic. 2. The exogenous force of infection adds a constant per-step Bernoulli hazard to every susceptible (e.g. spillover from an unmodeled reservoir, environmental exposure, off-network contacts). Setting `exog.inf.prob = 0` gives a purely network-driven model. This is not importation, which would describe already-infected individuals arriving in the population and is properly handled by an arrivals module. ### Recovery Module Two flows: I to R at `rec.rate`, plus an optional R to S waning of natural immunity at `rs.rate`. When `rs.rate = 0` this is standard SIR; when `rs.rate > 0` it becomes SIRS. ```{r} #| label: recovery-module recov <- function(dat, at) { active <- get_attr(dat, "active") status <- get_attr(dat, "status") rec.rate <- get_param(dat, "rec.rate") rs.rate <- get_param(dat, "rs.rate") ## I -> R ## nRec <- 0 idsElig <- which(active == 1 & status == "i") if (length(idsElig) > 0) { vec <- which(rbinom(length(idsElig), 1, rec.rate) == 1) if (length(vec) > 0) { idsRec <- idsElig[vec] nRec <- length(idsRec) status[idsRec] <- "r" } } ## R -> S waning (optional, SIRS) ## nWane <- 0 if (rs.rate > 0) { # <1> idsEligWane <- which(active == 1 & status == "r") if (length(idsEligWane) > 0) { vecWane <- which(rbinom(length(idsEligWane), 1, rs.rate) == 1) if (length(vecWane) > 0) { idsWane <- idsEligWane[vecWane] nWane <- length(idsWane) status[idsWane] <- "s" } } } dat <- set_attr(dat, "status", status) dat <- set_epi(dat, "ir.flow", at, nRec) dat <- set_epi(dat, "rs.flow", at, nWane) dat <- set_epi(dat, "r.num", at, sum(active == 1 & status == "r")) return(dat) } ``` 1. The `rs.rate > 0` switch is what converts SIR to SIRS. It's the single mechanism that lets the disease persist endemically and gives the reactive program something to keep responding to over a long horizon. ### Vaccination Module The schedule-driven module. The first block applies optional vaccine waning (V to S). The second decides whether the program is active at this timestep. The third is a standard all-or-nothing vaccination process, gated by the active flag. ```{r} #| label: vaccinate-module vaccinate <- function(dat, at) { active <- get_attr(dat, "active") status <- get_attr(dat, "status") vax.attempted <- get_attr(dat, "vax.attempted", override.null.error = TRUE) vax.rate <- get_param(dat, "vax.rate") vax.efficacy <- get_param(dat, "vax.efficacy") vax.wane <- get_param(dat, "vax.wane") vax.starts <- get_param(dat, "vax.starts") vax.ends <- get_param(dat, "vax.ends") vax.prev.on <- get_param(dat, "vax.prev.on") vax.prev.off <- get_param(dat, "vax.prev.off") if (is.null(vax.attempted)) { # <1> vax.attempted <- rep(0, length(active)) dat <- set_attr(dat, "vax.attempted", vax.attempted) } ## V -> S waning (optional) ## # Runs before the activity check so newly waned individuals are eligible # for re-vaccination in this same timestep if the program is active. nWane <- 0 if (vax.wane > 0) { idsEligWane <- which(active == 1 & status == "v") if (length(idsEligWane) > 0) { vecWane <- which(rbinom(length(idsEligWane), 1, vax.wane) == 1) if (length(vecWane) > 0) { idsWane <- idsEligWane[vecWane] nWane <- length(idsWane) status[idsWane] <- "s" vax.attempted[idsWane] <- 0 # <2> } } } ## Activity check ## if (vax.prev.on > 0) { # <3> nAct <- sum(active == 1) current.prev <- if (nAct > 0) { sum(active == 1 & status == "i") / nAct } else 0 prev.active <- 0 if (at > 2) { val <- get_epi(dat, "vax.active", at = at - 1, override.null.error = TRUE) if (!is.null(val) && !is.na(val)) prev.active <- val } if (prev.active == 1) { vax.active <- as.numeric(current.prev > vax.prev.off) # <4> } else { vax.active <- as.numeric(current.prev > vax.prev.on) } } else { vax.active <- as.numeric(any(at >= vax.starts & at <= vax.ends)) # <5> } ## Apply vaccination when active ## nVax <- 0 nImmune <- 0 if (vax.active == 1 && vax.rate > 0) { idsElig <- which(active == 1 & status == "s" & vax.attempted == 0) if (length(idsElig) > 0) { vecVax <- which(rbinom(length(idsElig), 1, vax.rate) == 1) if (length(vecVax) > 0) { idsVax <- idsElig[vecVax] nVax <- length(idsVax) vax.attempted[idsVax] <- 1 vecImmune <- which(rbinom(nVax, 1, vax.efficacy) == 1) # <6> idsImmune <- idsVax[vecImmune] nImmune <- length(idsImmune) if (nImmune > 0) status[idsImmune] <- "v" } } } dat <- set_attr(dat, "status", status) dat <- set_attr(dat, "vax.attempted", vax.attempted) dat <- set_epi(dat, "vax.active", at, vax.active) dat <- set_epi(dat, "vax.flow", at, nVax) dat <- set_epi(dat, "sv.flow", at, nImmune) dat <- set_epi(dat, "vs.flow", at, nWane) dat <- set_epi(dat, "v.num", at, sum(active == 1 & status == "v")) return(dat) } ``` 1. Lazy initialization of the per-node `vax.attempted` flag on the module's first call. 2. When a vaccinated individual's protection wanes, reset their attempted flag so they're eligible to be re-vaccinated by future activations. 3. Reactive mode is selected by setting `vax.prev.on > 0`. Otherwise the module falls back to the windowed schedule. 4. **Hysteresis.** If currently active, stay active until prevalence drops below the lower threshold. If currently inactive, stay inactive until prevalence rises above the upper threshold. This prevents rapid on/off toggling near a single threshold. 5. **Vectorized window check.** Parallel vectors of starts and ends mean the same line handles a single campaign, a bounded short campaign, or arbitrarily many pulses. 6. **All-or-nothing protection.** Each vaccinated individual becomes immune with probability `vax.efficacy`. Unprotected vaccinees stay susceptible but their `vax.attempted` flag is set so they won't be re-vaccinated until their protection (if any) wanes. ## Network Model ```{r} #| label: network-estimation n <- 500 nw <- network_initialize(n) formation <- ~edges target.stats <- c(round(1.5 * n / 2)) # <1> coef.diss <- dissolution_coefs(dissolution = ~offset(edges), duration = 60) est <- netest(nw, formation, target.stats, coef.diss) ``` 1. Mean degree = 1.5 (375 edges across 500 nodes). High enough that transmission isn't bottlenecked by isolation, low enough that the dynamics remain clean. The intervention timing is the focus, not the network. ### Network Diagnostics ```{r} #| label: fig-network-dx #| fig-cap: "Network diagnostic plots verifying the simulated network reproduces target statistics for edges and degree distribution." dx <- netdx(est, nsims = nsims, ncores = ncores, nsteps = nsteps, nwstats.formula = ~edges + degree(0:3)) print(dx) plot(dx) ``` ## Epidemic Simulation ### Control Settings ```{r} #| label: control init <- init.net(i.num = 10) control <- control.net( type = NULL, nsims = nsims, ncores = ncores, nsteps = nsteps, infection.FUN = infect, recovery.FUN = recov, vaccinate.FUN = vaccinate, # <1> verbose = FALSE ) ``` 1. `vaccinate.FUN` is a custom module slot. Any name ending in `.FUN` can be passed to `control.net()` and EpiModel will splice it into the default module pipeline. ### Base Parameters All scenarios share the same disease parameters. The base parameter set holds defaults for every parameter the modules read; per-scenario overrides are applied via the scenarios API in the next section. `vax.starts` and `vax.ends` are length-2 vectors so the pulse scenario can express two activation windows via the `_N` vector-position suffix on the scenarios data frame. ```{r} #| label: param-base param_base <- param.net( inf.prob = 0.10, act.rate = 1, rec.rate = 0.04, rs.rate = 0, # <1> exog.inf.prob = 0, vax.rate = 0.05, vax.efficacy = 0.9, vax.wane = 0, # <2> vax.starts = c(-1, -1), vax.ends = c(-1, -1), vax.prev.on = -1, vax.prev.off = -1 ) ``` 1. `rs.rate = 0` keeps the model as standard SIR. Setting it positive switches on R-to-S waning (SIRS), which sustains an endemic equilibrium. 2. `vax.wane = 0` keeps vaccine immunity permanent. Setting it positive lets vaccinated individuals return to the susceptible pool over time. ### Closed-SIR Scenarios Five scenarios share identical disease parameters and differ only in the activation schedule. The disease burns out as a single wave. Each scenario is one row in a flat data frame; the `_1` and `_2` columns encode positions of the length-2 vector parameters (an unused window position takes `-1`). ```{r} #| label: sim-closed-sir scenarios_sir.df <- data.frame( .scenario.id = c("none", "early", "late", "pulse", "react"), .at = 0, vax.rate = c(0, 0.05, 0.05, 0.05, 0.05), vax.starts_1 = c(-1, 30, 100, 40, -1), vax.starts_2 = c(-1, -1, -1, 120, -1), vax.ends_1 = c(-1, nsteps, nsteps, 70, -1), vax.ends_2 = c(-1, -1, -1, 150, -1), vax.prev.on = c(-1, -1, -1, -1, 0.05), vax.prev.off = c(-1, -1, -1, -1, 0.02) ) scenarios_sir.list <- create_scenario_list(scenarios_sir.df) sims <- list() for (scn in scenarios_sir.list) { sims[[scn$id]] <- netsim(est, use_scenario(param_base, scn), init, control) } ``` ### Endemic SIRS Scenarios Switching on `rs.rate` (natural immunity waning) and `vax.wane` (vaccine immunity waning) converts the model to a SIRS setting. The disease no longer burns out as a single wave; instead it settles into a sustained endemic equilibrium, and the reactive program acquires something to do over a long horizon. ```{r} #| label: sim-endemic control_endemic <- control.net( type = NULL, nsims = nsims, ncores = ncores, nsteps = nsteps_endemic, infection.FUN = infect, recovery.FUN = recov, vaccinate.FUN = vaccinate, verbose = FALSE ) scenarios_endemic.df <- data.frame( .scenario.id = c("endemic_none", "endemic_react"), .at = 0, vax.rate = c(0, 0.07), rs.rate = c(0.015, 0.015), vax.wane = c(0.03, 0.03), vax.prev.on = c(-1, 0.05), vax.prev.off = c(-1, 0.02) ) scenarios_endemic.list <- create_scenario_list(scenarios_endemic.df) sims_endemic <- list() for (scn in scenarios_endemic.list) { sims_endemic[[scn$id]] <- netsim(est, use_scenario(param_base, scn), init, control_endemic) } sim_endemic_none <- sims_endemic[["endemic_none"]] sim_endemic_react <- sims_endemic[["endemic_react"]] ``` ## Analysis ```{r} #| label: post-process labels <- c(none = "No vaccination", early = "Early (start 30)", late = "Late (start 100)", pulse = "Pulses (40-70, 120-150)", react = "Reactive (>5% / <2%)") cols <- c(none = "gray40", early = "seagreen", late = "firebrick", pulse = "#8e44ad", react = "steelblue") sims <- lapply(sims, function(s) mutate_epi(s, prev = i.num / num)) ``` ### Prevalence by Intervention Timing Same disease, same per-step vaccination rate, different schedules. Early and Reactive both clip the epidemic peak; Late only mops up after the peak has passed; Pulses produce a knock-down/rebound shape as vaccination switches on and off. ```{r} #| label: fig-prevalence #| fig-cap: "Prevalence over time for the five closed-SIR scenarios. The Early and Reactive curves clip the peak; the Late curve tracks the no-intervention curve until step 100 and then mops up; the Pulses curve shows two distinct interventions." par(mfrow = c(1, 1), mar = c(3, 3, 2, 1), mgp = c(2, 1, 0)) plot(sims$none, y = "prev", main = "Prevalence by Intervention Timing", ylab = "Prevalence (I / N)", xlab = "Time Step", mean.col = cols["none"], mean.lwd = 2, mean.smooth = TRUE, qnts = FALSE, legend = FALSE) for (k in c("early", "late", "pulse", "react")) { plot(sims[[k]], y = "prev", mean.col = cols[k], mean.lwd = 2, mean.smooth = TRUE, qnts = FALSE, legend = FALSE, add = TRUE) } legend("topright", legend = labels, col = cols, lwd = 2, bty = "n", cex = 0.8) ``` ### Disease Burden and Per-Dose Efficiency The cumulative-burden bar chart shows the Early vs. Late contrast clearly. The per-dose efficiency plot tells a complementary story: the Reactive scenario uses far fewer doses to achieve a comparable reduction, and ends up with the highest *infections averted per dose* of any scenario. ```{r} #| label: fig-burden #| fig-cap: "Left: cumulative new infections by scenario. Right: infections averted per vaccine dose --- the Reactive scenario achieves the highest per-dose efficiency by using doses only when prevalence is rising." cum_inf <- sapply(sims, function(s) { df <- as.data.frame(s) mean(tapply(df$si.flow, df$sim, sum, na.rm = TRUE)) }) total_vax <- sapply(sims, function(s) { df <- as.data.frame(s) mean(tapply(df$vax.flow, df$sim, sum, na.rm = TRUE)) }) averted <- cum_inf["none"] - cum_inf avert_per_dose <- ifelse(total_vax > 0, averted / total_vax, NA) par(mfrow = c(1, 2), mar = c(7, 4, 2, 1), mgp = c(2.5, 1, 0)) bp <- barplot(cum_inf, col = cols, las = 2, ylab = "Cumulative infections", main = "Disease Burden", names.arg = labels, cex.names = 0.8, ylim = c(0, max(cum_inf) * 1.15)) text(bp, cum_inf + max(cum_inf) * 0.03, round(cum_inf), cex = 0.8, font = 2) apd_plot <- avert_per_dose apd_plot[is.na(apd_plot)] <- 0 bp2 <- barplot(apd_plot, col = cols, las = 2, ylab = "Infections averted per dose", main = "Per-Dose Efficiency", names.arg = labels, cex.names = 0.8, ylim = c(0, max(apd_plot, na.rm = TRUE) * 1.15 + 0.01)) text(bp2, apd_plot + max(apd_plot, na.rm = TRUE) * 0.03, ifelse(is.na(avert_per_dose), "n/a", sprintf("%.2f", apd_plot)), cex = 0.8, font = 2) ``` ### Endemic Comparison: Sustained Reactive Cycling This is the headline phenomenon of the example. The top panel shows the SIRS dynamics with no intervention: a sustained endemic equilibrium that oscillates around the 5% activation threshold for the full simulation horizon. The bottom panel shows the same dynamics with the reactive program added: vaccination toggles on and off many times, suppressing each rising wave below the threshold and standing down when prevalence falls. A single representative simulation is plotted because averaging across simulations smooths the binary on/off activity flag into a fractional value and hides the cycling. ```{r} #| label: fig-endemic #| fig-cap: "Endemic SIRS dynamics with and without the reactive vaccination program (single sim, 1000 timesteps). Top: sustained endemic oscillations without intervention. Bottom: reactive vaccination produces sustained on/off cycling that keeps prevalence below the activation threshold." sim_endemic_none <- mutate_epi(sim_endemic_none, prev = i.num / num) sim_endemic_react <- mutate_epi(sim_endemic_react, prev = i.num / num) df_n1 <- subset(as.data.frame(sim_endemic_none), sim == 1) df_r1 <- subset(as.data.frame(sim_endemic_react), sim == 1) ymax <- max(df_n1$i.num / df_n1$num, na.rm = TRUE) * 1.2 par(mfrow = c(2, 1), mar = c(3, 4, 2, 4), mgp = c(2.5, 1, 0)) plot(df_n1$time, df_n1$prev, type = "l", lwd = 2, col = "firebrick", xlab = "Time Step", ylab = "Prevalence (I / N)", main = "Endemic SIRS without Intervention (sim 1)", ylim = c(0, ymax)) abline(h = 0.05, lty = 2, col = "firebrick", lwd = 0.6) plot(df_r1$time, df_r1$prev, type = "l", lwd = 2, col = "steelblue", xlab = "Time Step", ylab = "Prevalence (I / N)", main = "Endemic SIRS + Reactive Vaccination (sim 1)", ylim = c(0, ymax)) abline(h = 0.05, lty = 2, col = "firebrick") abline(h = 0.02, lty = 2, col = "seagreen") par(new = TRUE) plot(df_r1$time, df_r1$vax.active, type = "s", lwd = 1.5, col = "gray40", axes = FALSE, xlab = "", ylab = "", ylim = c(0, 1.05)) axis(4) mtext("Vaccination active (0/1)", side = 4, line = 2.5) legend("topright", legend = c("Prevalence", "Activation 5%", "Deactivation 2%", "Program active"), col = c("steelblue", "firebrick", "seagreen", "gray40"), lty = c(1, 2, 2, 1), lwd = c(2, 1, 1, 1.5), bty = "n", cex = 0.75) ``` ### Summary Table ```{r} #| label: tbl-summary final_v <- sapply(sims, function(s) { df <- as.data.frame(s) round(mean(df$v.num[df$time == max(df$time)], na.rm = TRUE)) }) pct_averted <- ifelse(names(averted) == "none", "--", paste0(round(averted / cum_inf["none"] * 100), "%")) apd_str <- ifelse(is.na(avert_per_dose), "--", sprintf("%.2f", avert_per_dose)) knitr::kable(data.frame( Scenario = labels, Cum_inf = round(cum_inf), Averted = ifelse(names(averted) == "none", 0, round(averted)), Pct_averted = pct_averted, Doses = round(total_vax), Averted_per_dose = apd_str, Vacc_immune_end = final_v, row.names = NULL )) ``` ## Timing Sensitivity Sweep Sweeping the campaign start time from `0` to `200` traces a dose-response style curve for *when* to deploy. Below about timestep 60, the marginal benefit of a one-step delay is small; above that, the curve drops sharply as the campaign begins to miss the bulk of the epidemic. ```{r} #| label: fig-sweep #| fig-cap: "Cumulative infections (left) and percent infections averted (right) as a function of campaign start time. A clear deadline appears around timestep 60-80, beyond which the campaign's marginal benefit drops sharply." #| eval: false sweep_starts <- seq(0, 200, by = 20) sweep.df <- data.frame( .scenario.id = paste0("start_", sweep_starts), .at = 0, vax.starts_1 = sweep_starts, vax.starts_2 = -1, vax.ends_1 = nsteps, vax.ends_2 = -1 ) sweep.list <- create_scenario_list(sweep.df) sweep_cum <- numeric(length(sweep.list)) for (i in seq_along(sweep.list)) { s <- netsim(est, use_scenario(param_base, sweep.list[[i]]), init, control) df <- as.data.frame(s) sweep_cum[i] <- mean(tapply(df$si.flow, df$sim, sum, na.rm = TRUE)) } sweep_pct <- 100 * (cum_inf["none"] - sweep_cum) / cum_inf["none"] par(mfrow = c(1, 2), mar = c(3.5, 4, 2, 1), mgp = c(2.4, 1, 0)) plot(sweep_starts, sweep_cum, type = "b", pch = 19, lwd = 2, col = "steelblue", xlab = "Campaign start timestep", ylab = "Cumulative infections", main = "Burden vs. Start Time") abline(h = cum_inf["none"], lty = 2, col = "gray50") plot(sweep_starts, sweep_pct, type = "b", pch = 19, lwd = 2, col = "seagreen", xlab = "Campaign start timestep", ylab = "% infections averted", main = "Benefit by Start Time", ylim = c(0, 100)) ``` ::: {.callout-note} The sweep adds ~1 minute of runtime on a laptop (11 simulations at `nsteps = 400`, `nsims = 5`). The chunk is set with `eval: false` so the rendered page uses the figure baked in via `freeze: auto`. To run it yourself, set `eval: true` (or paste into your R session) --- the included `model.R` runs it under `if (interactive())`. ::: ## Parameters ### Disease | Parameter | Description | Default | |-----------|-------------|---------| | `inf.prob` | Per-act transmission probability | 0.10 | | `act.rate` | Acts per partnership per timestep | 1 | | `rec.rate` | Per-timestep recovery rate (mean infectious ~25) | 0.04 | | `rs.rate` | R-to-S waning rate (`0` = SIR; `> 0` = SIRS) | 0 | | `exog.inf.prob` | Per-S probability of exogenous infection per step | 0 | ### Vaccination | Parameter | Description | Default | |-----------|-------------|---------| | `vax.rate` | Per-S vaccination probability per active timestep | 0.05 | | `vax.efficacy` | All-or-nothing protection probability | 0.9 | | `vax.wane` | V-to-S waning rate (`0` = permanent vaccine immunity) | 0 | ### Schedule | Parameter | Description | Disabled | |-----------|-------------|----------| | `vax.starts` | Vector of window start timesteps | `-1` | | `vax.ends` | Vector of window end timesteps | `-1` | | `vax.prev.on` | Reactive activation threshold | `-1` | | `vax.prev.off` | Reactive deactivation threshold | `-1` | Reactive mode is selected when `vax.prev.on > 0`. Otherwise the module uses the windowed schedule. ### Network | Parameter | Description | Default | |-----------|-------------|---------| | Population size | Number of nodes | 500 | | Target edges | Mean concurrent partnerships | 375 (mean degree = 1.5) | | Partnership duration | Mean edge duration (timesteps) | 60 | ## Module Execution Order ``` resim_nets -> summary_nets -> infection -> recovery -> vaccinate -> nwupdate -> prevalence ``` EpiModel's default pipeline. Our three custom modules (`infect`, `recov`, `vaccinate`) replace the corresponding built-in slots; the rest are EpiModel built-ins. The built-in `prevalence.net` runs last and fills in `s.num`, `i.num`, and `num` from the updated status vector. ## Next Steps - **Combine timing with a leaky vaccine** by porting the schedule pattern to the leaky-vaccine module --- see [SEIRS with Leaky Vaccination](../seirs-leaky-vaccination/). - **Phase a testing or treatment intervention** instead of vaccination. The same windowed and reactive logic can wrap any rate parameter --- see [Test and Treat Intervention](../sis-test-and-treat/). - **Time-vary the disease parameters themselves**, e.g. a seasonal `inf.prob`, by applying the same `at`-dependent gate inside the infection module. - **Combine windowed and reactive logic**: a planned campaign that can be extended if prevalence remains above a threshold. - **Layer onto a model with vital dynamics** so vaccination must keep up with the inflow of new susceptibles --- see [SEIR with AON Vaccination](../seir-aon-vaccination/).
