Social Diffusion Model

social diffusion

complex contagion

intermediate

SI-based model comparing simple, threshold, and dose-response diffusion mechanisms on a social network

Author

Samuel M. Jenness

Published

September 1, 2018

Overview

This example demonstrates how EpiModel’s SI (susceptible-infected) framework can be repurposed to model social diffusion — the spread of ideas, behaviors, or technologies through a social network. Unlike infectious disease, social diffusion often exhibits complex contagion: adoption requires reinforcement from multiple contacts, not just exposure to a single carrier. The model compares three diffusion mechanisms on the same network to show how mechanism choice drives qualitatively different dynamics even when the network and initial conditions are identical.

The three mechanisms are: (1) simple contagion, where each contact between an adopter and non-adopter has a constant probability of causing adoption, serving as the baseline equivalent to standard SI transmission; (2) threshold diffusion, where adoption is blocked until a non-adopter has at least a minimum number of adopter contacts; and (3) dose-response diffusion, where adoption probability is a smooth logistic function of the number of adopter contacts. These correspond to key models from the social contagion literature, particularly the framework of complex contagion introduced by Centola and Macy (2007).

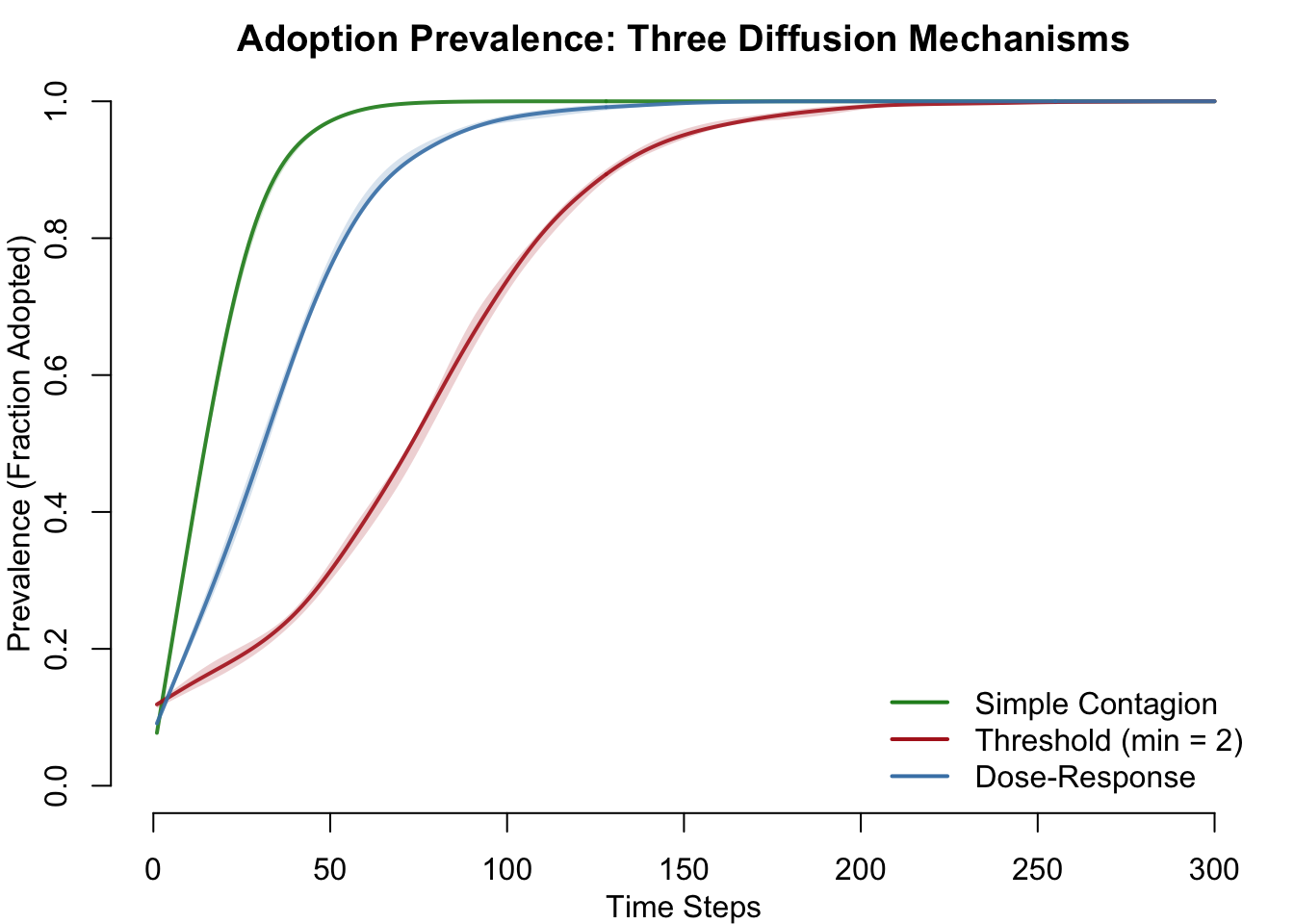

The key insight is that the same well-connected network produces dramatically different diffusion trajectories depending on the mechanism. Simple contagion spreads fastest, following a classic S-curve. Threshold diffusion is dramatically delayed but then accelerates sharply once critical mass is reached. Dose-response diffusion falls between the two. Notably, the threshold model uses a per-act adoption probability 5x higher than simple contagion yet is still roughly 4x slower to reach 50% adoption — demonstrating that the mechanism of social influence matters more than the probability per contact.

Download the Source Files

The complete source code for this example is available for download:

model.R: Main simulation script with all three diffusion scenarios
module-fx.R: Custom threshold and dose-response diffusion modules

Model Structure

This model uses SI (susceptible-infected) dynamics with no recovery, meaning adoption is permanent. The “S” compartment represents non-adopters and the “I” compartment represents adopters. The three scenarios differ only in how the adoption probability is calculated from a non-adopter’s exposure to adopter contacts.

Model compartments
Compartment	Label	Description
Non-Adopter	S	Has not yet adopted the behavior, idea, or technology
Adopter	I	Has adopted; can influence connected non-adopters

graph LR
    S["Non-Adopter (S)"] -->|"Adoption"| I["Adopter (I)"]

    style S fill:#4a90d9,stroke:#2c5f8a,color:#fff
    style I fill:#d94a4a,stroke:#8a2c2c,color:#fff

Diffusion flow diagram. Adoption is permanent (SI dynamics).

The critical distinction between the three scenarios lies in how the adoption probability is determined from a non-adopter’s network neighborhood:

graph TD
    DEL["Discordant Edgelist<br/>(adopter--nonadopter pairs)"] --> COUNT["Count adopter contacts<br/>per non-adopter (exposure)"]

    COUNT --> S1["<b>Simple Contagion</b><br/>P = inf.prob<br/>(constant, ignores exposure)"]
    COUNT --> S2["<b>Threshold</b><br/>P = inf.prob if exposure >= min.degree<br/>P = 0 otherwise"]
    COUNT --> S3["<b>Dose-Response</b><br/>P = plogis(beta0 + beta1 * exposure)<br/>(smooth logistic function)"]

    S1 --> ADOPT["Stochastic adoption<br/>via rbinom()"]
    S2 --> ADOPT
    S3 --> ADOPT

    style DEL fill:#e8e8e8,stroke:#999
    style COUNT fill:#f5f5dc,stroke:#999
    style S1 fill:#6aaa6a,stroke:#3d6b3d,color:#fff
    style S2 fill:#d94a4a,stroke:#8a2c2c,color:#fff
    style S3 fill:#4a90d9,stroke:#2c5f8a,color:#fff
    style ADOPT fill:#e8e8e8,stroke:#999

Adoption probability calculation by mechanism. All three start from the same discordant edgelist but compute adoption probability differently.

Dose-Response Probability Curve

The logistic dose-response function with beta0 = -5.0 and beta1 = 1.5 produces these adoption probabilities per act:

Dose-response adoption probabilities by exposure count
Adopter Contacts	Log-Odds	P(adopt per act)
0	-5.0	0.007
1	-3.5	0.029
2	-2.0	0.119
3	-0.5	0.378
4	+1.0	0.731

By comparison, simple contagion uses a constant P = 0.1 regardless of exposure, and the threshold model uses P = 0.5 when exposure >= 2 and P = 0 otherwise.

Setup

We begin by loading EpiModel and setting the simulation parameters. The interactive() values are used here for richer output.

library(EpiModel)

nsims <- 5
ncores <- 5
nsteps <- 300

Custom Modules

The simple contagion scenario uses EpiModel’s built-in SI infection module, so no custom code is needed for that case. The two complex contagion scenarios each require a custom infection module that replaces the standard transmission logic with exposure-dependent adoption rules.

Threshold Diffusion Module

The diffuse_threshold function models complex contagion with a hard threshold. A non-adopter must have at least min.degree adopter contacts before adoption becomes possible. Below this threshold, the adoption probability is exactly zero regardless of other parameters. This captures phenomena like technology adoption (“I’ll switch only if enough friends already use it”) or collective action (“I’ll join only if enough peers are committed”).

diffuse_threshold <- function(dat, at) {

  ## Attributes ##
  active <- get_attr(dat, "active")
  status <- get_attr(dat, "status")
  infTime <- get_attr(dat, "infTime")

  ## Parameters ##
  inf.prob <- get_param(dat, "inf.prob")
  act.rate <- get_param(dat, "act.rate")
  min.degree <- get_param(dat, "min.degree")

  ## Find adopted ("infected") nodes ##
  idsInf <- which(active == 1 & status == "i")
  nActive <- sum(active == 1)
  nElig <- length(idsInf)

  ## Initialize adoption count ##
  nAdopt <- 0

  ## Diffusion process ##
  if (nElig > 0 && nElig < nActive) {

1    del <- discord_edgelist(dat, at)

    if (!is.null(del)) {

2      exposure <- aggregate(
        list(exposure = rep(1, nrow(del))),
        by = list(sus = del$sus), FUN = sum
      )
      del <- merge(del, exposure, by = "sus")

3      del$transProb <- ifelse(
        del$exposure >= min.degree, inf.prob, 0
      )

      del$actRate <- act.rate
      del$finalProb <- 1 - (1 - del$transProb)^del$actRate

4      transmit <- rbinom(nrow(del), 1, del$finalProb)
      del <- del[which(transmit == 1), ]

      idsNewAdopt <- unique(del$sus)
      nAdopt <- length(idsNewAdopt)

      if (nAdopt > 0) {
        status[idsNewAdopt] <- "i"
        infTime[idsNewAdopt] <- at
        dat <- set_attr(dat, "status", status)
        dat <- set_attr(dat, "infTime", infTime)
      }
    }
  }

  ## Summary statistics ##
5  dat <- set_epi(dat, "si.flow", at, nAdopt)

  return(dat)
}

1: discord_edgelist returns all edges between adopters (“i”) and non-adopters (“s”). Each row represents one adopter–nonadopter partnership.
2: The exposure count is computed by aggregating the DEL: a non-adopter connected to 3 adopters has 3 rows, so aggregate gives exposure = 3.
3: The threshold rule: adoption probability equals inf.prob only when exposure meets or exceeds min.degree; otherwise it is exactly 0.
4: Stochastic adoption draws via rbinom. The final probability accounts for multiple acts per partnership per time step.

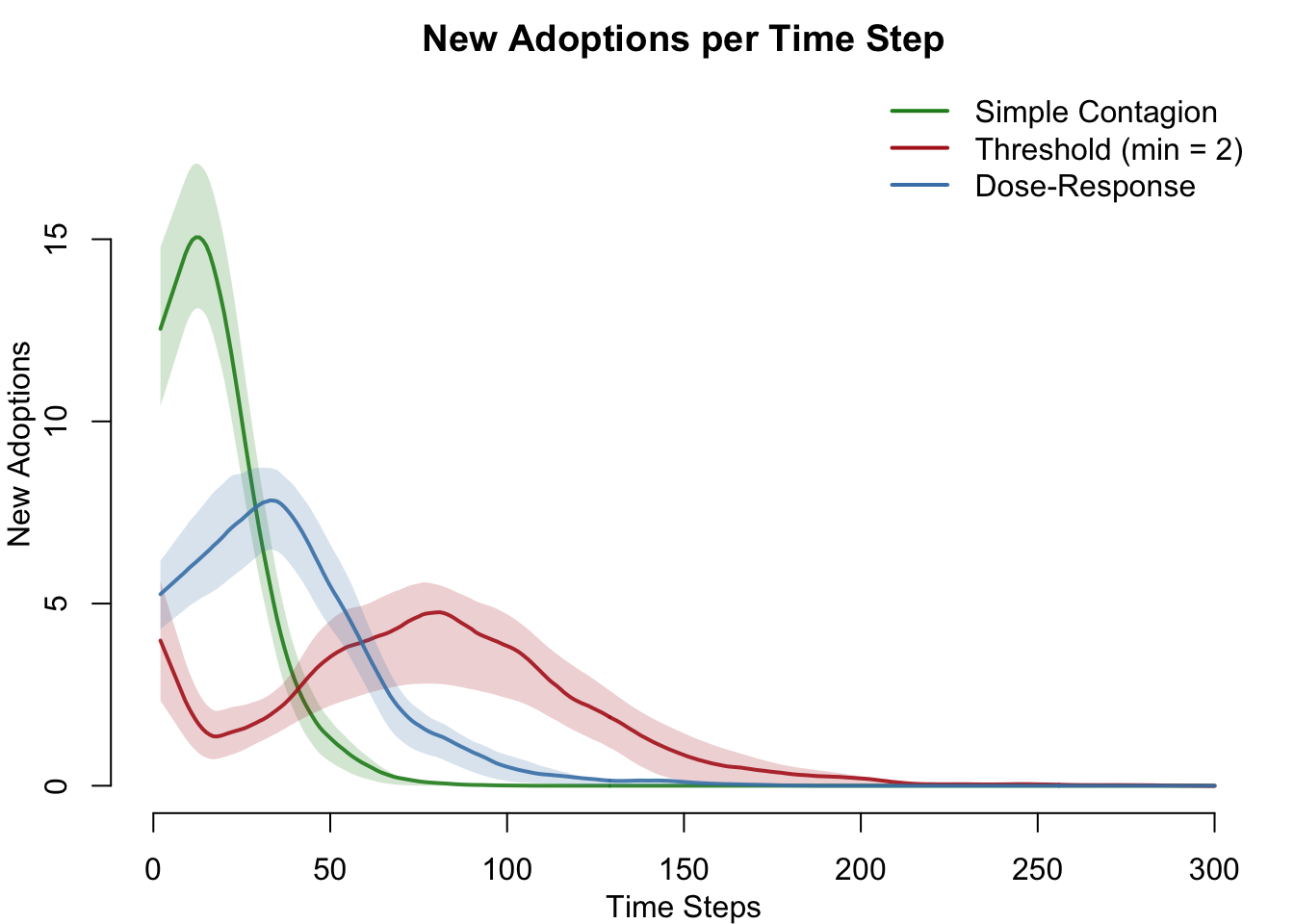

5: The si.flow tracker records the number of new adoptions at each time step for later analysis.

Dose-Response Diffusion Module

The diffuse_dose_response function models adoption probability as a smooth logistic function of exposure: P(adopt) = plogis(beta0 + beta1 * exposure). Unlike the threshold model, there is no hard cutoff — even zero adopter contacts yields a small nonzero probability (controlled by beta0). This represents an intermediate model between simple contagion and threshold contagion.

diffuse_dose_response <- function(dat, at) {

  ## Attributes ##
  active <- get_attr(dat, "active")
  status <- get_attr(dat, "status")
  infTime <- get_attr(dat, "infTime")

  ## Parameters ##
  beta0 <- get_param(dat, "beta0")
  beta1 <- get_param(dat, "beta1")
  act.rate <- get_param(dat, "act.rate")

  ## Find adopted ("infected") nodes ##
  idsInf <- which(active == 1 & status == "i")
  nActive <- sum(active == 1)
  nElig <- length(idsInf)

  ## Initialize adoption count ##
  nAdopt <- 0

  ## Diffusion process ##
  if (nElig > 0 && nElig < nActive) {

1    del <- discord_edgelist(dat, at)

    if (!is.null(del)) {

2      exposure <- aggregate(
        list(exposure = rep(1, nrow(del))),
        by = list(sus = del$sus), FUN = sum
      )
      del <- merge(del, exposure, by = "sus")

3      del$transProb <- plogis(
        beta0 + beta1 * del$exposure
      )

      del$actRate <- act.rate
      del$finalProb <- 1 - (1 - del$transProb)^del$actRate

4      transmit <- rbinom(nrow(del), 1, del$finalProb)
      del <- del[which(transmit == 1), ]

      idsNewAdopt <- unique(del$sus)
      nAdopt <- length(idsNewAdopt)

      if (nAdopt > 0) {
        status[idsNewAdopt] <- "i"
        infTime[idsNewAdopt] <- at
        dat <- set_attr(dat, "status", status)
        dat <- set_attr(dat, "infTime", infTime)
      }
    }
  }

  ## Summary statistics ##
5  dat <- set_epi(dat, "si.flow", at, nAdopt)

  return(dat)
}

1: Same discordant edgelist extraction as the threshold module — the structure is identical for both complex contagion approaches.
2: Exposure counting is the same: the number of rows per non-adopter in the DEL equals the number of current adopter contacts.
3: The logistic dose-response function replaces the threshold rule. plogis(beta0 + beta1 * exposure) maps the exposure count to an adoption probability on (0, 1).
4: Stochastic adoption using the same rbinom framework. The final probability formula 1 - (1 - transProb)^actRate accounts for multiple acts.
5: New adoptions per time step are tracked in si.flow for comparison across scenarios.

Network Model

Network Initialization

We initialize a 500-node network representing a social contact network. This could represent friendships, coworker relationships, or any social ties through which information or behavior can spread.

n <- 500
nw <- network_initialize(n)

Formation and Dissolution

The formation model targets 600 edges (mean degree = 2 x 600 / 500 = 2.4) with 20 isolated nodes (4% of the population). The isolates term controls how many nodes have degree 0, which shapes the degree distribution. A mean degree of 2.4 is important for the threshold model: with lower connectivity, requiring 2 adopter contacts would make diffusion nearly impossible because most nodes would not have enough contacts.

The partnership duration of 50 time steps represents stable social ties. Longer durations create a more stable network where people maintain the same connections over time, which is realistic for social relationships. This stability is important for the threshold model because non-adopters keep the same contacts for extended periods, meaning they must wait for those specific contacts to adopt (or for network turnover) before meeting the threshold requirement.

formation <- ~edges + isolates
target.stats <- c(600, 20)

coef.diss <- dissolution_coefs(dissolution = ~offset(edges), duration = 50)
coef.diss

Dissolution Coefficients
=======================
Dissolution Model: ~offset(edges)
Target Statistics: 50
Crude Coefficient: 3.89182
Mortality/Exit Rate: 0
Adjusted Coefficient: 3.89182

Network Estimation

est <- netest(nw, formation, target.stats, coef.diss)

Network Diagnostics

We verify that the simulated network maintains its target statistics and inspect the degree distribution. The degree distribution is particularly important here because complex contagion depends on having multiple adopter contacts, which requires sufficient connectivity (nodes with degree >= 2).

dx <- netdx(est, nsims = nsims, ncores = ncores, nsteps = nsteps,
            nwstats.formula = ~edges + isolates + degree(0:5))


Network Diagnostics
-----------------------
- Simulating 5 networks
- Calculating formation statistics

print(dx)

EpiModel Network Diagnostics
=======================
Diagnostic Method: Dynamic
Simulations: 5
Time Steps per Sim: 300

Formation Diagnostics
-----------------------
         Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges       600  596.185   -0.636  2.857  -1.335        10.060        18.823
isolates     20   21.862    9.310  0.502   3.710         1.114         5.039
degree0      NA   21.862       NA  0.502      NA         1.114         5.039
degree1      NA  126.911       NA  1.244      NA         3.652        11.016
degree2      NA  145.670       NA  1.084      NA         1.102        10.702
degree3      NA  107.159       NA  0.916      NA         1.212        10.000
degree4      NA   59.042       NA  0.614      NA         2.130         7.207
degree5      NA   25.445       NA  0.514      NA         1.380         5.214

Duration Diagnostics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges     50   49.739   -0.523  0.353  -0.741         1.344         1.917

Dissolution Diagnostics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges   0.02     0.02   -1.084      0  -1.803             0         0.006

plot(dx)

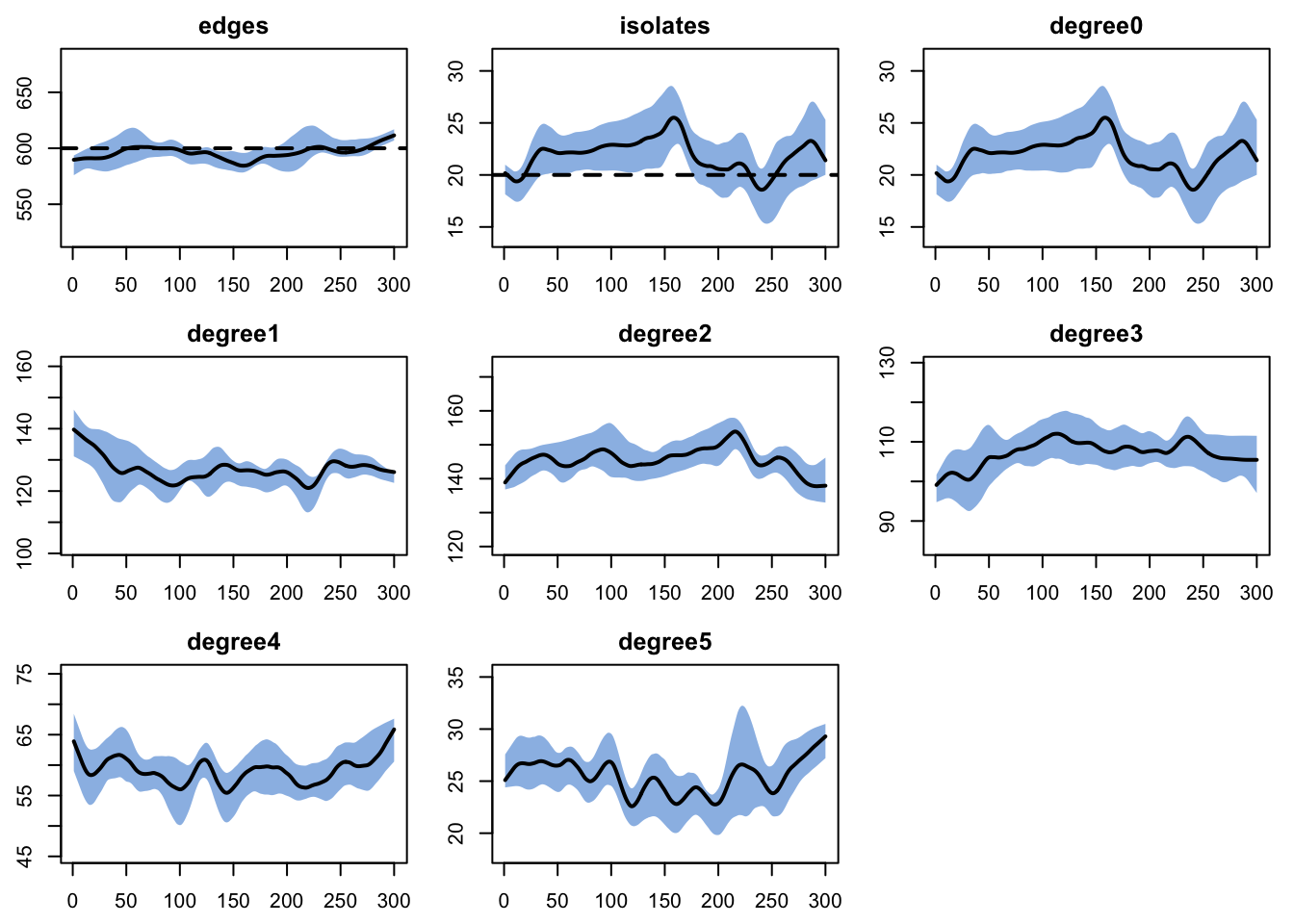

Figure 1: Network diagnostics showing target statistic tracking over time. The simulated network should maintain approximately 600 edges and 20 isolates throughout the simulation period.

Epidemic Simulation

All three scenarios share the same initial conditions: 50 initial adopters (10% seed prevalence). A meaningful seed is needed because the threshold model requires local clusters of adopters to form before diffusion can begin. With too few initial adopters on a stable network, the threshold model can stall entirely.

init <- init.net(i.num = 50)

Scenario 1: Simple Contagion (Baseline)

This scenario uses EpiModel’s built-in SI model. Each contact between an adopter and a non-adopter has a fixed probability of 0.1 of causing adoption, regardless of how many other adopter contacts the non-adopter has. This is the standard “simple contagion” assumption used in most epidemic models and serves as the reference case.

param_simple <- param.net(inf.prob = 0.1, act.rate = 1)

control_simple <- control.net(
  type = "SI",
  nsteps = nsteps,
  nsims = nsims,
  ncores = ncores,
  verbose = FALSE
)

sim_simple <- netsim(est, param_simple, init, control_simple)
print(sim_simple)

EpiModel Simulation
=======================
Model class: netsim

Simulation Summary
-----------------------
Model type: SI
No. simulations: 5
No. time steps: 300
No. NW groups: 1

Fixed Parameters
---------------------------
inf.prob = 0.1
act.rate = 1
groups = 1

Model Output
-----------------------
Variables: s.num i.num num si.flow
Networks: sim1 ... sim5
Transmissions: sim1 ... sim5

Formation Statistics
-----------------------
         Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges       600  595.841   -0.693  3.483  -1.194         9.692        22.307
isolates     20   22.663   13.317  0.443   6.018         0.751         4.714


Duration Statistics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges     50   50.168    0.337  0.286   0.589         0.994         1.705

Dissolution Statistics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges   0.02     0.02    0.397      0     0.5             0         0.006

Scenario 2: Threshold Diffusion

A non-adopter only considers adoption when they have at least min.degree = 2 contacts who are already adopters. Below this threshold, the adoption probability is exactly zero. The per-act adoption probability is set to 0.5 once the threshold is met — deliberately 5x higher than simple contagion’s 0.1 to demonstrate that the threshold mechanism still produces much slower diffusion despite the higher probability.

param_threshold <- param.net(inf.prob = 0.5, act.rate = 1, min.degree = 2)

control_threshold <- control.net(
  type = NULL,
  nsteps = nsteps,
  nsims = nsims,
  ncores = ncores,
  infection.FUN = diffuse_threshold,
  verbose = FALSE
)

sim_threshold <- netsim(est, param_threshold, init, control_threshold)
print(sim_threshold)

EpiModel Simulation
=======================
Model class: netsim

Simulation Summary
-----------------------
Model type:
No. simulations: 5
No. time steps: 300
No. NW groups: 1

Fixed Parameters
---------------------------
inf.prob = 0.5
act.rate = 1
min.degree = 2
groups = 1

Model Functions
-----------------------
initialize.FUN
resim_nets.FUN
summary_nets.FUN
infection.FUN
nwupdate.FUN
prevalence.FUN
verbose.FUN

Model Output
-----------------------
Variables: s.num i.num num si.flow
Networks: sim1 ... sim5
Transmissions: sim1 ... sim5

Formation Statistics
-----------------------
         Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges       600  597.333   -0.445  3.733  -0.715         9.164        21.117
isolates     20   21.501    7.503  0.442   3.392         1.338         4.701


Duration Statistics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges     50   49.715   -0.571  0.385  -0.742         1.019         1.938

Dissolution Statistics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges   0.02     0.02   -0.171      0  -0.237             0         0.006

Scenario 3: Dose-Response Diffusion

Adoption probability is a smooth logistic function of exposure: plogis(-5.0 + 1.5 * exposure). With a single adopter contact the probability is very low (0.029), so diffusion requires some social reinforcement. But unlike the threshold model, there is no hard cutoff — even isolated exposure can rarely cause adoption, preventing the complete stalling that can occur with threshold diffusion when clusters are sparse.

param_dose <- param.net(beta0 = -5.0, beta1 = 1.5, act.rate = 1)

control_dose <- control.net(
  type = NULL,
  nsteps = nsteps,
  nsims = nsims,
  ncores = ncores,
  infection.FUN = diffuse_dose_response,
  verbose = FALSE
)

sim_dose <- netsim(est, param_dose, init, control_dose)
print(sim_dose)

EpiModel Simulation
=======================
Model class: netsim

Simulation Summary
-----------------------
Model type:
No. simulations: 5
No. time steps: 300
No. NW groups: 1

Fixed Parameters
---------------------------
act.rate = 1
beta0 = -5
beta1 = 1.5
groups = 1

Model Functions
-----------------------
initialize.FUN
resim_nets.FUN
summary_nets.FUN
infection.FUN
nwupdate.FUN
prevalence.FUN
verbose.FUN

Model Output
-----------------------
Variables: s.num i.num num si.flow
Networks: sim1 ... sim5
Transmissions: sim1 ... sim5

Formation Statistics
-----------------------
         Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges       600  597.858   -0.357  2.747  -0.780         7.521        16.784
isolates     20   21.528    7.640  0.401   3.809         0.290         4.389


Duration Statistics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges     50   50.813    1.625  0.366    2.22         1.248         1.941

Dissolution Statistics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges   0.02     0.02   -0.703      0  -1.044             0         0.006

Analysis

Derived Measures

We compute adoption prevalence as a derived measure for all three scenarios to enable direct comparison.

sim_simple <- mutate_epi(sim_simple, prev = i.num / num)
sim_threshold <- mutate_epi(sim_threshold, prev = i.num / num)
sim_dose <- mutate_epi(sim_dose, prev = i.num / num)

Adoption Prevalence Comparison

This is the central comparison plot. All three scenarios use the same network, the same initial seed, and the same act rate. The only difference is the mechanism by which exposure translates into adoption probability.

par(mfrow = c(1, 1), mar = c(3, 3, 2, 1), mgp = c(2, 1, 0))

plot(sim_simple, y = "prev",
     main = "Adoption Prevalence: Three Diffusion Mechanisms",
     ylab = "Prevalence (Fraction Adopted)", xlab = "Time Steps",
     mean.col = "forestgreen", mean.lwd = 2, mean.smooth = TRUE,
     qnts.col = "forestgreen", qnts.alpha = 0.2, qnts.smooth = TRUE,
     legend = FALSE, ylim = c(0, 1))
plot(sim_threshold, y = "prev", add = TRUE,
     mean.col = "firebrick", mean.lwd = 2, mean.smooth = TRUE,
     qnts.col = "firebrick", qnts.alpha = 0.2, qnts.smooth = TRUE,
     legend = FALSE)
plot(sim_dose, y = "prev", add = TRUE,
     mean.col = "steelblue", mean.lwd = 2, mean.smooth = TRUE,
     qnts.col = "steelblue", qnts.alpha = 0.2, qnts.smooth = TRUE,
     legend = FALSE)
legend("bottomright",
       legend = c("Simple Contagion", "Threshold (min = 2)", "Dose-Response"),
       col = c("forestgreen", "firebrick", "steelblue"),
       lwd = 2, bty = "n")

Figure 2: Adoption prevalence over time for the three diffusion mechanisms. Simple contagion (green) spreads fastest with a smooth S-curve. Threshold diffusion (red) shows delayed onset followed by rapid acceleration. Dose-response (blue) is intermediate. Shaded bands show interquartile ranges across simulations.

Adoption Incidence Comparison

The incidence plot shows the number of new adoptions per time step. Simple contagion produces a single smooth peak. Threshold diffusion shows a delayed, potentially sharper peak. Dose-response is intermediate.

par(mfrow = c(1, 1), mar = c(3, 3, 2, 1), mgp = c(2, 1, 0))

plot(sim_simple, y = "si.flow",
     main = "New Adoptions per Time Step",
     ylab = "New Adoptions", xlab = "Time Steps",
     mean.col = "forestgreen", mean.lwd = 2, mean.smooth = TRUE,
     qnts.col = "forestgreen", qnts.alpha = 0.2, qnts.smooth = TRUE,
     legend = FALSE)
plot(sim_threshold, y = "si.flow", add = TRUE,
     mean.col = "firebrick", mean.lwd = 2, mean.smooth = TRUE,
     qnts.col = "firebrick", qnts.alpha = 0.2, qnts.smooth = TRUE,
     legend = FALSE)
plot(sim_dose, y = "si.flow", add = TRUE,
     mean.col = "steelblue", mean.lwd = 2, mean.smooth = TRUE,
     qnts.col = "steelblue", qnts.alpha = 0.2, qnts.smooth = TRUE,
     legend = FALSE)
legend("topright",
       legend = c("Simple Contagion", "Threshold (min = 2)", "Dose-Response"),
       col = c("forestgreen", "firebrick", "steelblue"),
       lwd = 2, bty = "n")

Figure 3: New adoptions per time step for each diffusion mechanism. The timing and shape of the incidence peak differs markedly across mechanisms, reflecting the different constraints on when adoption can occur.

Individual Scenario Detail

Each panel shows the non-adopter (S) and adopter (I) compartment counts for one scenario with quantile bands across simulations, revealing the stochastic variability within each mechanism.

par(mfrow = c(1, 3), mar = c(3, 3, 2, 1), mgp = c(2, 1, 0))

plot(sim_simple, y = c("s.num", "i.num"),
     main = "Simple Contagion",
     ylab = "Count", xlab = "Time Steps",
     mean.col = c("steelblue", "firebrick"),
     mean.lwd = 2, mean.smooth = TRUE,
     qnts.col = c("steelblue", "firebrick"),
     qnts.alpha = 0.2, qnts.smooth = TRUE,
     legend = TRUE)

plot(sim_threshold, y = c("s.num", "i.num"),
     main = "Threshold (min = 2)",
     ylab = "Count", xlab = "Time Steps",
     mean.col = c("steelblue", "firebrick"),
     mean.lwd = 2, mean.smooth = TRUE,
     qnts.col = c("steelblue", "firebrick"),
     qnts.alpha = 0.2, qnts.smooth = TRUE,
     legend = TRUE)

plot(sim_dose, y = c("s.num", "i.num"),
     main = "Dose-Response",
     ylab = "Count", xlab = "Time Steps",
     mean.col = c("steelblue", "firebrick"),
     mean.lwd = 2, mean.smooth = TRUE,
     qnts.col = c("steelblue", "firebrick"),
     qnts.alpha = 0.2, qnts.smooth = TRUE,
     legend = TRUE)

Figure 4: Compartment dynamics for each scenario. Left: simple contagion shows rapid, smooth transition. Center: threshold diffusion shows delayed onset and wider stochastic variability. Right: dose-response is intermediate.

Summary Table

df_simple <- as.data.frame(sim_simple)
df_threshold <- as.data.frame(sim_threshold)
df_dose <- as.data.frame(sim_dose)
last_t <- max(df_simple$time)

calc_t50 <- function(df) {
  mean_prev <- tapply(df$prev, df$time, mean, na.rm = TRUE)
  reached <- which(mean_prev >= 0.5)
  if (length(reached) == 0) NA else min(reached)
}
t50_simple <- calc_t50(df_simple)
t50_threshold <- calc_t50(df_threshold)
t50_dose <- calc_t50(df_dose)

summary_df <- data.frame(
  Metric = c("Final prevalence",
             "Time to 50% adoption",
             "Peak new adoptions/step",
             "Cumulative adoptions",
             "Mean prevalence"),
  Simple = c(round(mean(df_simple$prev[df_simple$time == last_t],
                        na.rm = TRUE), 3),
             t50_simple,
             round(max(tapply(df_simple$si.flow, df_simple$time,
                              mean, na.rm = TRUE), na.rm = TRUE), 1),
             round(sum(tapply(df_simple$si.flow, df_simple$time,
                              mean, na.rm = TRUE), na.rm = TRUE)),
             round(mean(df_simple$prev, na.rm = TRUE), 3)),
  Threshold = c(round(mean(df_threshold$prev[df_threshold$time == last_t],
                           na.rm = TRUE), 3),
                t50_threshold,
                round(max(tapply(df_threshold$si.flow, df_threshold$time,
                                 mean, na.rm = TRUE), na.rm = TRUE), 1),
                round(sum(tapply(df_threshold$si.flow, df_threshold$time,
                                 mean, na.rm = TRUE), na.rm = TRUE)),
                round(mean(df_threshold$prev, na.rm = TRUE), 3)),
  Dose_Response = c(round(mean(df_dose$prev[df_dose$time == last_t],
                               na.rm = TRUE), 3),
                    t50_dose,
                    round(max(tapply(df_dose$si.flow, df_dose$time,
                                     mean, na.rm = TRUE), na.rm = TRUE), 1),
                    round(sum(tapply(df_dose$si.flow, df_dose$time,
                                     mean, na.rm = TRUE), na.rm = TRUE)),
                    round(mean(df_dose$prev, na.rm = TRUE), 3))
)

knitr::kable(summary_df, col.names = c("Metric", "Simple", "Threshold", "Dose-Response"))

Table 1: Comparative summary statistics across the three diffusion mechanisms.

Metric	Simple	Threshold	Dose-Response
Final prevalence	1.000	1.000	1.000
Time to 50% adoption	15.000	74.000	32.000
Peak new adoptions/step	22.000	8.800	10.400
Cumulative adoptions	450.000	450.000	450.000
Mean prevalence	0.947	0.762	0.887

Parameters

Network Parameters

Network formation and dissolution parameters
Parameter	Value	Description
Network size	500	Total nodes in the social network
`edges` target	600	Mean degree = 2.4
`isolates` target	20	4% of nodes have no connections
Partnership duration	50	Average time steps per social tie

Scenario Parameters

Epidemic parameters by diffusion scenario
Parameter	Simple	Threshold	Dose-Response	Description
`inf.prob`	0.1	0.5	—	Per-act adoption probability
`act.rate`	1	1	1	Acts per partnership per time step
`min.degree`	—	2	—	Minimum adopter contacts required
`beta0`	—	—	-5.0	Log-odds intercept
`beta1`	—	—	1.5	Log-odds slope per adopter contact
Initial adopters	50	50	50	Seed prevalence = 10%

Module Execution Order

All three scenarios follow the same module execution order at each time step. The only difference is the infection module used.

Module execution order at each time step
Order	Module	Function	Description
1	Resimulation	`resim_nets` (built-in)	Resimulate the dynamic network for the current time step
2	Infection	`infection.net` (simple) or `diffuse_threshold` or `diffuse_dose_response`	Compute adoption probability and determine new adopters
3	Prevalence	`prevalence.net` (built-in)	Update compartment counts and summary statistics

Next Steps

This example illustrates how EpiModel’s modular architecture allows the infection process to be completely replaced with custom diffusion logic. The same approach can be used to model other non-standard transmission processes. Related gallery examples include:

SEIR with Exposed State: Adds a latent period between exposure and infectiousness — a complementary way to model delayed onset dynamics.
SIS with Competing Strains: Models two competing behaviors or strains on the same network, which could be extended to competing innovations in a diffusion context.
SEIR with All-or-Nothing Vaccination: Demonstrates threshold-based protection mechanics that parallel the threshold diffusion concept.
Cost-Effectiveness Analysis: Shows how to attach outcome measures (costs, QALYs) to simulation results — applicable to evaluating diffusion intervention strategies.
