Competing Pathogen Strains in an SIS Epidemic

SIS

multi-strain

network effects

intermediate

Models SIS with two competing strains differing in transmission-duration trade-offs, showing how network concurrency determines which strain dominates.

Author

Samuel M. Jenness

Published

September 1, 2018

Overview

This example models an SIS epidemic with two competing pathogen strains that differ in their transmission strategy: one is highly infectious but short-lived (an “acute” strain), while the other has low infectiousness but persists for much longer (a “chronic” strain). This trade-off between infectiousness and duration is common in real pathogens — for example, gonorrhea vs. chlamydia, or different variants of the same pathogen.

The central question: which transmission strategy wins? The answer depends critically on the network structure — specifically, whether concurrency (simultaneous partnerships) is allowed. Concurrency amplifies transmission by allowing an infected individual to spread the pathogen to a new partner before the existing partnership ends, creating branching chains of transmission. This benefits the fast-spreading acute strain disproportionately.

This example demonstrates how to extend EpiModel’s infection and recovery modules to track multiple strains, and how network structure (not just individual-level parameters) can determine epidemic outcomes.

Download standalone scripts

model.R — Main simulation script
module-fx.R — Custom module functions

Model Structure

Compartment	Label	Description
Susceptible	S	Not infected; at risk of infection by either strain
Infectious (Strain 1)	I1	Infected with the acute strain (high transmission, fast recovery)
Infectious (Strain 2)	I2	Infected with the chronic strain (low transmission, slow recovery)

flowchart TD
    S["<b>S</b><br/>Susceptible"] -->|"infection by strain 1<br/>(si.flow)"| I1["<b>I1</b><br/>Strain 1 (acute)<br/>inf.prob = 0.5"]
    S -->|"infection by strain 2<br/>(si.flow.st2)"| I2["<b>I2</b><br/>Strain 2 (chronic)<br/>inf.prob.st2 = 0.01"]
    I1 -->|"fast recovery<br/>(rec.rate = 0.05)"| S
    I2 -->|"slow recovery<br/>(rec.rate.st2 = 0.005)"| S

    style S fill:#3498db,color:#fff
    style I1 fill:#e74c3c,color:#fff
    style I2 fill:#2980b9,color:#fff

This is an SIS model — recovered individuals return to the susceptible pool and can be reinfected by either strain. The two strains compete for the same pool of susceptible hosts. Key dynamics:

Competitive exclusion: In many parameter regimes, one strain dominates and drives the other to extinction. The strains compete indirectly — by infecting susceptibles, each strain reduces the pool available to the other.
Coexistence is possible at intermediate concurrency levels, where both strains maintain endemic equilibria simultaneously.
No co-infection: An individual can only be infected with one strain at a time. On recovery, they become fully susceptible to both strains again.
Strain inheritance: Newly infected individuals inherit the strain of their infecting partner. There is no mutation or recombination.

Why Concurrency Matters

The two network models have identical mean degree, partnership duration, and act rates. The only difference is whether concurrency is allowed. Yet this structural difference reverses which strain dominates:

With concurrency: The acute strain (high inf.prob, fast recovery) can exploit branching transmission chains. An infected individual with 2+ partners can transmit to a new partner before recovering, even with a short infectious period. The fast transmission rate dominates.
Without concurrency (monogamy): Partners are sequential. The acute strain’s high per-act probability provides little advantage because transmission to each new partner must wait for the previous partnership to dissolve. The chronic strain’s long infectious duration means it persists across multiple sequential partnerships, giving it the advantage.

Setup

suppressMessages(library(EpiModel))

nsims <- 5
ncores <- 5
nsteps <- 500

Custom Modules

Strain Initialization Module

Runs once at the first module call (timestep 2). Each initially infected node is randomly assigned to strain 1 or strain 2 via a Bernoulli draw, with the probability of strain 2 controlled by pct.st2. Susceptible nodes receive NA for their strain attribute.

init_strain <- function(dat, at) {

1  if (is.null(get_attr(dat, "strain", override.null.error = TRUE))) {

    active <- get_attr(dat, "active")
    status <- get_attr(dat, "status")

    nActive <- sum(active == 1)
    idsInf <- which(active == 1 & status == "i")

    pct.st2 <- get_param(dat, "pct.st2")

2    strain <- rep(NA, nActive)
3    strain[idsInf] <- rbinom(length(idsInf), 1, pct.st2) + 1

    dat <- set_attr(dat, "strain", strain)
  }

  return(dat)
}

1: override.null.error = TRUE returns NULL instead of erroring when the attribute does not exist, allowing a one-time initialization check.
2: Susceptible nodes have NA for strain — they carry no pathogen.
3: rbinom(..., 1, pct.st2) + 1 produces 1 or 2: strain 1 with probability 1 - pct.st2, strain 2 with probability pct.st2.

Two-Strain Infection Module

Replaces EpiModel’s built-in infection.net to implement strain-specific transmission. For each discordant edge, the per-act transmission probability depends on the infected partner’s strain. Newly infected individuals inherit the infecting partner’s strain.

infection.2strains <- function(dat, at) {

  ## Attributes ##
  active <- get_attr(dat, "active")
  status <- get_attr(dat, "status")
  infTime <- get_attr(dat, "infTime")
  strain <- get_attr(dat, "strain")

  ## Parameters ##
  inf.prob <- get_param(dat, "inf.prob")
  act.rate <- get_param(dat, "act.rate")
  inf.prob.st2 <- get_param(dat, "inf.prob.st2")

  ## Eligible nodes ##
  idsInf <- which(active == 1 & status == "i")
  nActive <- sum(active == 1)
  nElig <- length(idsInf)

  ## Initialize flow counters ##
  nInf <- nInfST2 <- totInf <- 0

  if (nElig > 0 && nElig < nActive) {

1    del <- discord_edgelist(dat, at)

    if (!(is.null(del))) {

      del$infDur <- at - infTime[del$inf]
      del$infDur[del$infDur == 0] <- 1

      # Strain-specific transmission probabilities
      linf.prob <- length(inf.prob)
      linf.prob.st2 <- length(inf.prob.st2)

2      del$transProb <- ifelse(strain[del$inf] == 1,
                              ifelse(del$infDur <= linf.prob,
                                     inf.prob[del$infDur],
                                     inf.prob[linf.prob]),
                              ifelse(del$infDur <= linf.prob.st2,
                                     inf.prob.st2[del$infDur],
                                     inf.prob.st2[linf.prob.st2]))

      # Optional intervention effect
      if (!is.null(dat$param$inter.eff) && at >= dat$param$inter.start) {
        del$transProb <- del$transProb * (1 - dat$param$inter.eff)
      }

      lact.rate <- length(act.rate)
      del$actRate <- ifelse(del$infDur <= lact.rate,
                            act.rate[del$infDur],
                            act.rate[lact.rate])

3      del$finalProb <- 1 - (1 - del$transProb) ^ del$actRate

      transmit <- rbinom(nrow(del), 1, del$finalProb)
      del <- del[which(transmit == 1), ]

      idsNewInf <- unique(del$sus)

      # Resolve double infections: first infector determines strain
4      infpairs <- sapply(idsNewInf, function(x) min(which(del$sus == x)))

      if (length(infpairs) > 0) {
        infectors <- del$inf[infpairs]
        strain <- get_attr(dat, "strain")
        infectors_strain <- strain[infectors]

        nInf <- sum(infectors_strain == 1)
        nInfST2 <- sum(infectors_strain == 2)
        totInf <- nInf + nInfST2
      } else {
        nInf <- nInfST2 <- totInf <- 0
      }

      ## Update attributes for newly infected ##
      if (totInf > 0) {
        status[idsNewInf] <- "i"
        dat <- set_attr(dat, "status", status)
        infTime[idsNewInf] <- at
        dat <- set_attr(dat, "infTime", infTime)
5        strain[idsNewInf] <- strain[infectors]
        dat <- set_attr(dat, "strain", strain)
      }

    }
  }

  ## Summary statistics ##
  dat <- set_epi(dat, "si.flow", at, nInf)
  dat <- set_epi(dat, "si.flow.st2", at, nInfST2)
  dat <- set_epi(dat, "i.num.st1", at, sum(status == "i" & strain == 1))
  dat <- set_epi(dat, "i.num.st2", at, sum(status == "i" & strain == 2))

  return(dat)
}

1: discord_edgelist() returns all edges between susceptible and infected nodes — the potential transmission events.
2: Transmission probability is looked up by the infector’s strain. Both inf.prob and inf.prob.st2 can be vectors indexed by infection duration, allowing time-varying infectiousness.
3: Per-timestep probability accounts for multiple acts: P(transmit) = 1 - (1 - p)^acts.
4: When a susceptible has discordant edges with multiple infected partners and multiple transmissions occur, the first infector (by edgelist row order) determines the strain.
5: Newly infected individuals inherit the strain of their infecting partner — no mutation or recombination.

Two-Strain Recovery Module

Replaces EpiModel’s built-in recovery module to implement strain-dependent recovery rates. Strain 1 recovers at rec.rate (fast), strain 2 at rec.rate.st2 (slow). On recovery, both disease status and strain assignment are cleared.

recov.2strains <- function(dat, at) {

  ## Attributes ##
  active <- get_attr(dat, "active")
  status <- get_attr(dat, "status")
  strain <- get_attr(dat, "strain")

  ## Parameters ##
  rec.rate <- get_param(dat, "rec.rate")
  rec.rate.st2 <- get_param(dat, "rec.rate.st2")

  ## Determine eligible to recover ##
  idsElig <- which(active == 1 & status == "i")
  nElig <- length(idsElig)

  ## Strain-dependent recovery rates ##
  strain.elig <- strain[idsElig]
1  ratesElig <- ifelse(strain.elig == 1, rec.rate, rec.rate.st2)

  ## Stochastic recovery ##
2  vecRecov <- which(rbinom(nElig, 1, ratesElig) == 1)
  idsRecov <- idsElig[vecRecov]
  nRecov <- length(idsRecov)
  nRecov.st1 <- sum(strain[idsRecov] == 1)
  nRecov.st2 <- sum(strain[idsRecov] == 2)

  ## Update attributes for recovered individuals ##
  status[idsRecov] <- "s"
3  strain[idsRecov] <- NA

  dat <- set_attr(dat, "status", status)
  dat <- set_attr(dat, "strain", strain)

  ## Summary statistics ##
  dat <- set_epi(dat, "is.flow", at, nRecov)
  dat <- set_epi(dat, "is.flow.st1", at, nRecov.st1)
  dat <- set_epi(dat, "is.flow.st2", at, nRecov.st2)

  return(dat)
}

1: Each infected node’s recovery rate depends on its strain: 0.05 for strain 1 (mean ~20 weeks) vs. 0.005 for strain 2 (mean ~200 weeks).
2: Bernoulli trial per infected node — each has a strain-specific probability of recovering this timestep.
3: On recovery, both status and strain are cleared. The individual returns to susceptible and can be reinfected by either strain.

Network Model

Two formation models are compared. Both target 300 edges (mean degree 0.6) with 50-week partnership duration, but they differ in whether concurrency is allowed.

nw <- network_initialize(n = 1000)

# Model 1: Concurrency allowed (edges only)
1formation.mod1 <- ~edges
target.stats.mod1 <- 300

# Model 2: Strict monogamy (concurrent term constrained to 0)
2formation.mod2 <- ~edges + concurrent
target.stats.mod2 <- c(300, 0)

# Partnership duration: mean of 50 weeks, same for both models
coef.diss <- dissolution_coefs(dissolution = ~offset(edges), duration = 50)
coef.diss

# Fit both network models
est.mod1 <- netest(nw, formation.mod1, target.stats.mod1, coef.diss)
est.mod2 <- netest(nw, formation.mod2, target.stats.mod2, coef.diss)

1: Edges-only formation: no degree constraints. At 300 edges in a 1000-node network, some nodes will naturally have 2+ concurrent ties (~120 nodes).
2: Adding concurrent with a target of 0 prohibits any node from having more than 1 active tie at a time — strict monogamy with the same mean degree.

Dissolution Coefficients
=======================
Dissolution Model: ~offset(edges)
Target Statistics: 50
Crude Coefficient: 3.89182
Mortality/Exit Rate: 0
Adjusted Coefficient: 3.89182

Network Diagnostics

dx.mod1 <- netdx(est.mod1, nsims = nsims, ncores = ncores, nsteps = nsteps,
                 nwstats.formula = ~edges + concurrent + degree(0:5),
                 set.control.ergm = control.simulate.formula(MCMC.burnin = 1e5))


Network Diagnostics
-----------------------
- Simulating 5 networks
- Calculating formation statistics

print(dx.mod1)

EpiModel Network Diagnostics
=======================
Diagnostic Method: Dynamic
Simulations: 5
Time Steps per Sim: 500

Formation Diagnostics
-----------------------
           Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges         300  298.517   -0.494  2.751  -0.539         8.948        16.548
concurrent     NA  120.498       NA  1.909      NA         6.798        13.514
degree0        NA  549.719       NA  2.889      NA         8.826        19.818
degree1        NA  329.783       NA  1.693      NA         2.585        14.873
degree2        NA   97.714       NA  1.590      NA         4.795        11.917
degree3        NA   19.652       NA  0.401      NA         1.843         4.528
degree4        NA    2.813       NA  0.150      NA         0.298         1.684
degree5        NA    0.301       NA  0.041      NA         0.069         0.550

Duration Diagnostics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges     50   50.262    0.524  0.537   0.487         1.395         3.106

Dissolution Diagnostics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges   0.02     0.02    -0.11      0  -0.135             0         0.008

plot(dx.mod1, plots.joined = FALSE)

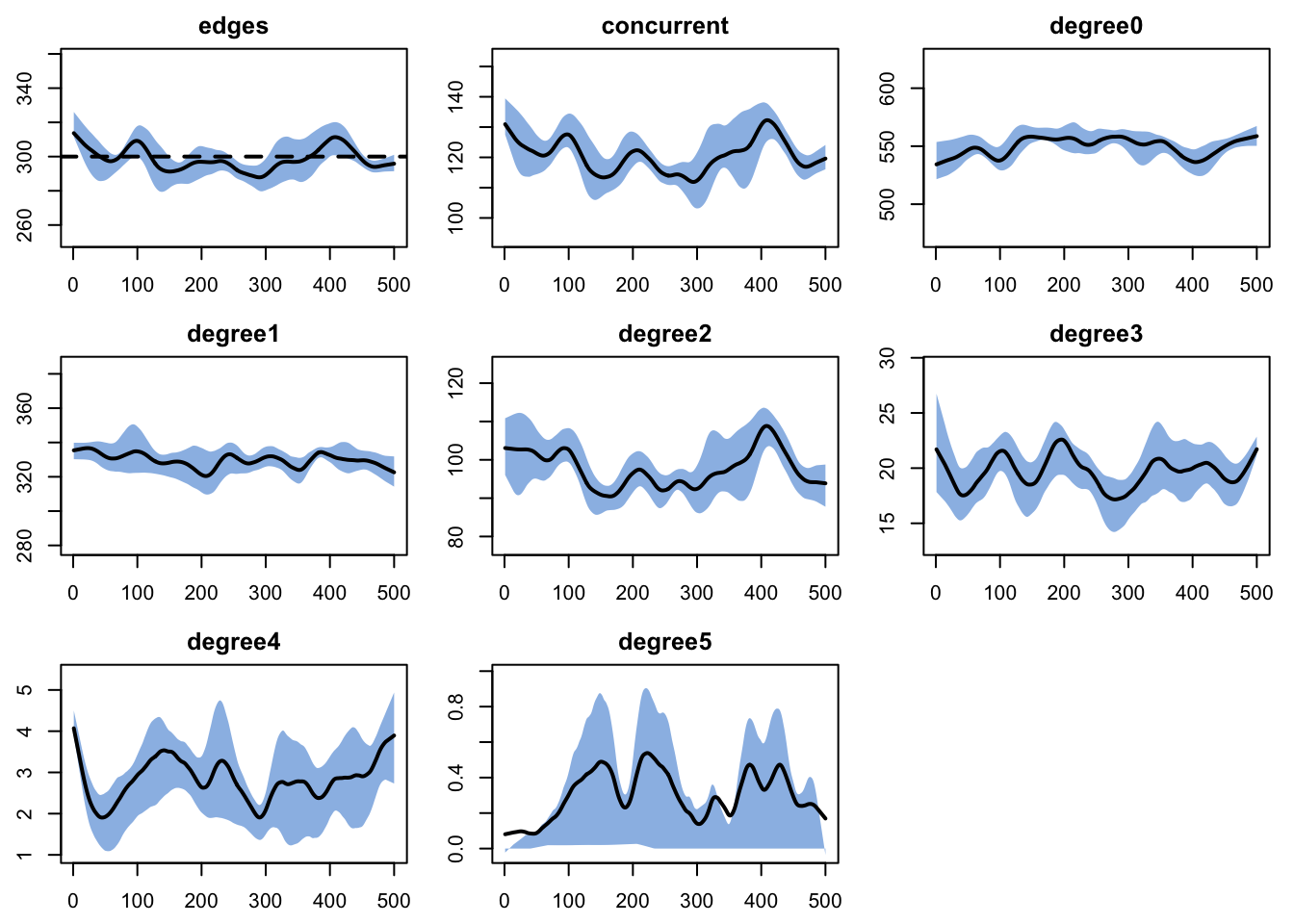

Figure 1: Network diagnostics for Model 1 (concurrency allowed). The simulation maintains the target of 300 edges, with approximately 120 nodes holding concurrent ties.

dx.mod2 <- netdx(est.mod2, nsims = nsims, ncores = ncores, nsteps = nsteps,
                 nwstats.formula = ~edges + concurrent + degree(0:5),
                 set.control.ergm = control.simulate.formula(MCMC.burnin = 1e5))


Network Diagnostics
-----------------------
- Simulating 5 networks
- Calculating formation statistics

print(dx.mod2)

EpiModel Network Diagnostics
=======================
Diagnostic Method: Dynamic
Simulations: 5
Time Steps per Sim: 500

Formation Diagnostics
-----------------------
           Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges         300  294.718   -1.761  0.688  -7.673         1.886         8.038
concurrent      0    0.000      NaN    NaN     NaN         0.000         0.000
degree0        NA  410.564       NA  1.377      NA         3.772        16.076
degree1        NA  589.436       NA  1.377      NA         3.772        16.076
degree2        NA    0.000       NA    NaN      NA         0.000         0.000
degree3        NA    0.000       NA    NaN      NA         0.000         0.000
degree4        NA    0.000       NA    NaN      NA         0.000         0.000
degree5        NA    0.000       NA    NaN      NA         0.000         0.000

Duration Diagnostics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges     50   50.611    1.221  0.472   1.293         0.796         2.843

Dissolution Diagnostics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges   0.02     0.02    0.193      0   0.237             0         0.008

plot(dx.mod2, plots.joined = FALSE)

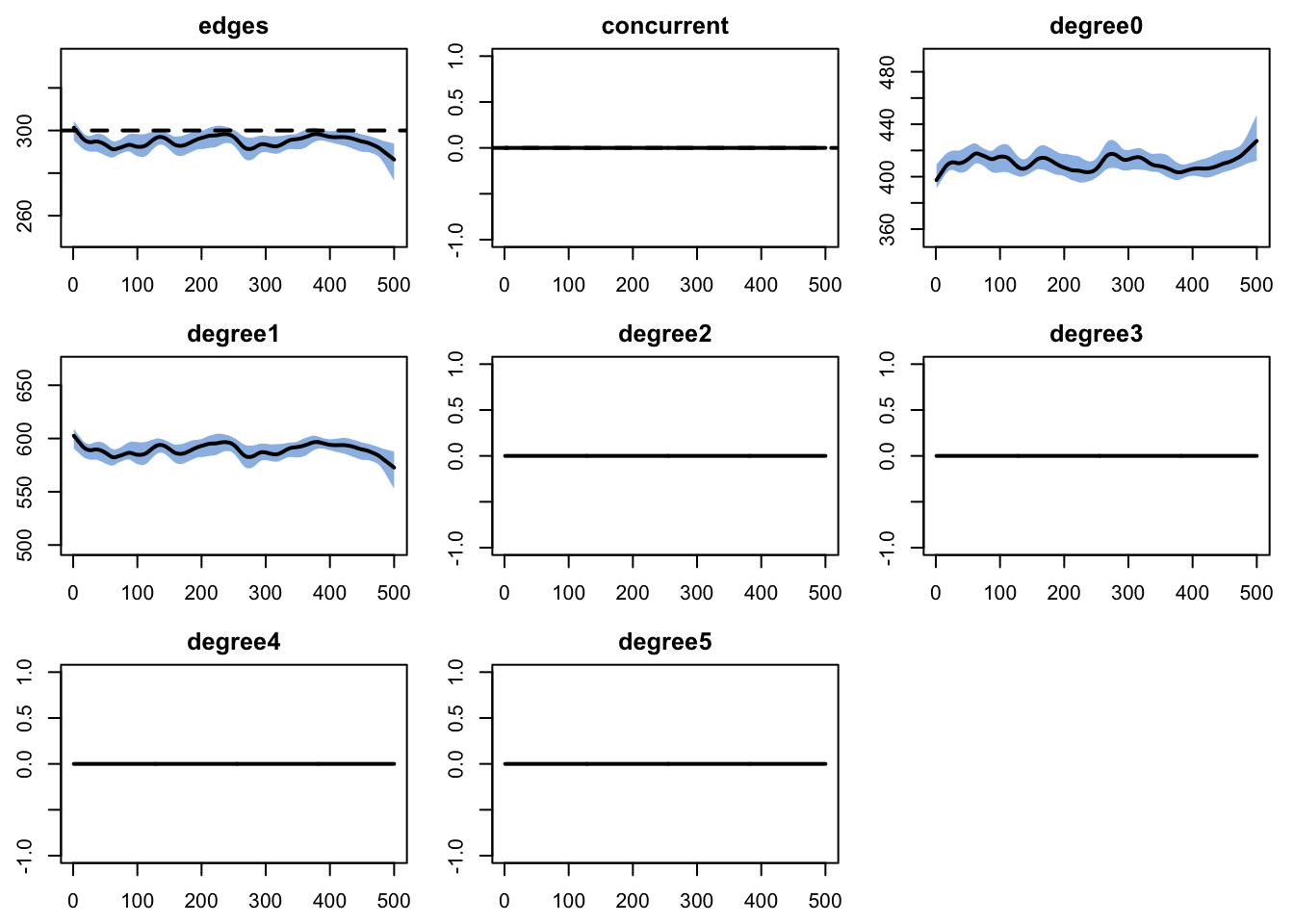

Figure 2: Network diagnostics for Model 2 (strict monogamy). The concurrent term is held at 0, enforcing sequential partnerships only.

Epidemic Simulation

Epidemic Parameters

The two strains embody a classic trade-off: strain 1 is fast-and-furious (high per-act probability, short duration) while strain 2 is slow-and-steady (low per-act probability, long duration). The act.rate of 2 acts per partnership per week and the 50/50 initial strain split (pct.st2 = 0.5) are shared across both network scenarios.

param <- param.net(
1  inf.prob = 0.5, inf.prob.st2 = 0.01,
2  rec.rate = 0.05, rec.rate.st2 = 0.005,
  pct.st2 = 0.5,
  act.rate = 2
)

3init <- init.net(i.num = 50)

control <- control.net(
  type = NULL,
  nsims = nsims,
  ncores = ncores,
  nsteps = nsteps,
  initStrain.FUN = init_strain,
  recovery.FUN = recov.2strains,
  infection.FUN = infection.2strains,
  verbose = FALSE
)

1: Strain 1 transmits at 50% per act; strain 2 at 1% per act — a 50-fold difference in infectiousness.
2: Strain 1 recovers in ~20 weeks on average; strain 2 in ~200 weeks — a 10-fold difference in duration.
3: 50 initially infected nodes (5% prevalence), split evenly between strains by the init_strain module.

Scenario 1: Concurrency Allowed

With concurrency, infected individuals can have multiple simultaneous partners. The acute strain (strain 1) exploits branching transmission chains — it can spread to a new partner before the existing partnership ends, even with a short infectious period.

sim.mod1 <- netsim(est.mod1, param, init, control)
print(sim.mod1)

EpiModel Simulation
=======================
Model class: netsim

Simulation Summary
-----------------------
Model type:
No. simulations: 5
No. time steps: 500
No. NW groups: 1

Fixed Parameters
---------------------------
inf.prob = 0.5
act.rate = 2
rec.rate = 0.05
inf.prob.st2 = 0.01
rec.rate.st2 = 0.005
pct.st2 = 0.5
groups = 1

Model Functions
-----------------------
initialize.FUN
resim_nets.FUN
summary_nets.FUN
infection.FUN
recovery.FUN
nwupdate.FUN
prevalence.FUN
verbose.FUN
initStrain.FUN

Model Output
-----------------------
Variables: s.num i.num num si.flow si.flow.st2 i.num.st1
i.num.st2 is.flow is.flow.st1 is.flow.st2
Networks: sim1 ... sim5
Transmissions: sim1 ... sim5

Formation Statistics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges    300  299.286   -0.238  2.133  -0.335         6.425        15.091


Duration Statistics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges     50   49.996   -0.008  0.453  -0.009         0.846         2.792

Dissolution Statistics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges   0.02     0.02   -0.273      0  -0.342         0.001         0.008

Scenario 2: Strict Monogamy

Without concurrency, partnerships are sequential. Each new contact requires waiting for the current partnership to dissolve. The chronic strain (strain 2) persists across multiple sequential partnerships, giving it the advantage.

sim.mod2 <- netsim(est.mod2, param, init, control)
print(sim.mod2)

EpiModel Simulation
=======================
Model class: netsim

Simulation Summary
-----------------------
Model type:
No. simulations: 5
No. time steps: 500
No. NW groups: 1

Fixed Parameters
---------------------------
inf.prob = 0.5
act.rate = 2
rec.rate = 0.05
inf.prob.st2 = 0.01
rec.rate.st2 = 0.005
pct.st2 = 0.5
groups = 1

Model Functions
-----------------------
initialize.FUN
resim_nets.FUN
summary_nets.FUN
infection.FUN
recovery.FUN
nwupdate.FUN
prevalence.FUN
verbose.FUN
initStrain.FUN

Model Output
-----------------------
Variables: s.num i.num num si.flow si.flow.st2 i.num.st1
i.num.st2 is.flow is.flow.st1 is.flow.st2
Networks: sim1 ... sim5
Transmissions: sim1 ... sim5

Formation Statistics
-----------------------
           Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges         300  295.627   -1.458  0.898  -4.869         1.932          9.01
concurrent      0    0.000      NaN    NaN     NaN         0.000          0.00


Duration Statistics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges     50   50.266    0.533  0.667     0.4         0.994          3.42

Dissolution Statistics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges   0.02     0.02    0.342      0   0.403             0         0.008

Analysis

sim.mod1 <- mutate_epi(sim.mod1, prev = i.num / num,
                       prev.st1 = i.num.st1 / num,
                       prev.st2 = i.num.st2 / num)
sim.mod2 <- mutate_epi(sim.mod2, prev = i.num / num,
                       prev.st1 = i.num.st1 / num,
                       prev.st2 = i.num.st2 / num)

Strain Competition: Concurrency vs. Monogamy

The headline result: concurrency reverses which strain dominates. With concurrency, the fast-spreading strain 1 (red) dominates and may drive strain 2 to extinction. Under monogamy, the slow-and-steady strain 2 (blue) wins and strain 1 goes extinct.

par(mfrow = c(1, 2), mar = c(3, 3, 2, 1), mgp = c(2, 1, 0))
plot(sim.mod1, y = c("i.num.st1", "i.num.st2"),
     main = "Concurrency Allowed",
     ylab = "Infected (count)", xlab = "Week",
     mean.col = c("firebrick", "steelblue"), mean.lwd = 2, mean.smooth = TRUE,
     qnts.col = c("firebrick", "steelblue"), qnts.alpha = 0.2,
     qnts.smooth = TRUE, legend = TRUE)
plot(sim.mod2, y = c("i.num.st1", "i.num.st2"),
     main = "Strict Monogamy",
     ylab = "Infected (count)", xlab = "Week",
     mean.col = c("firebrick", "steelblue"), mean.lwd = 2, mean.smooth = TRUE,
     qnts.col = c("firebrick", "steelblue"), qnts.alpha = 0.2,
     qnts.smooth = TRUE, legend = TRUE)

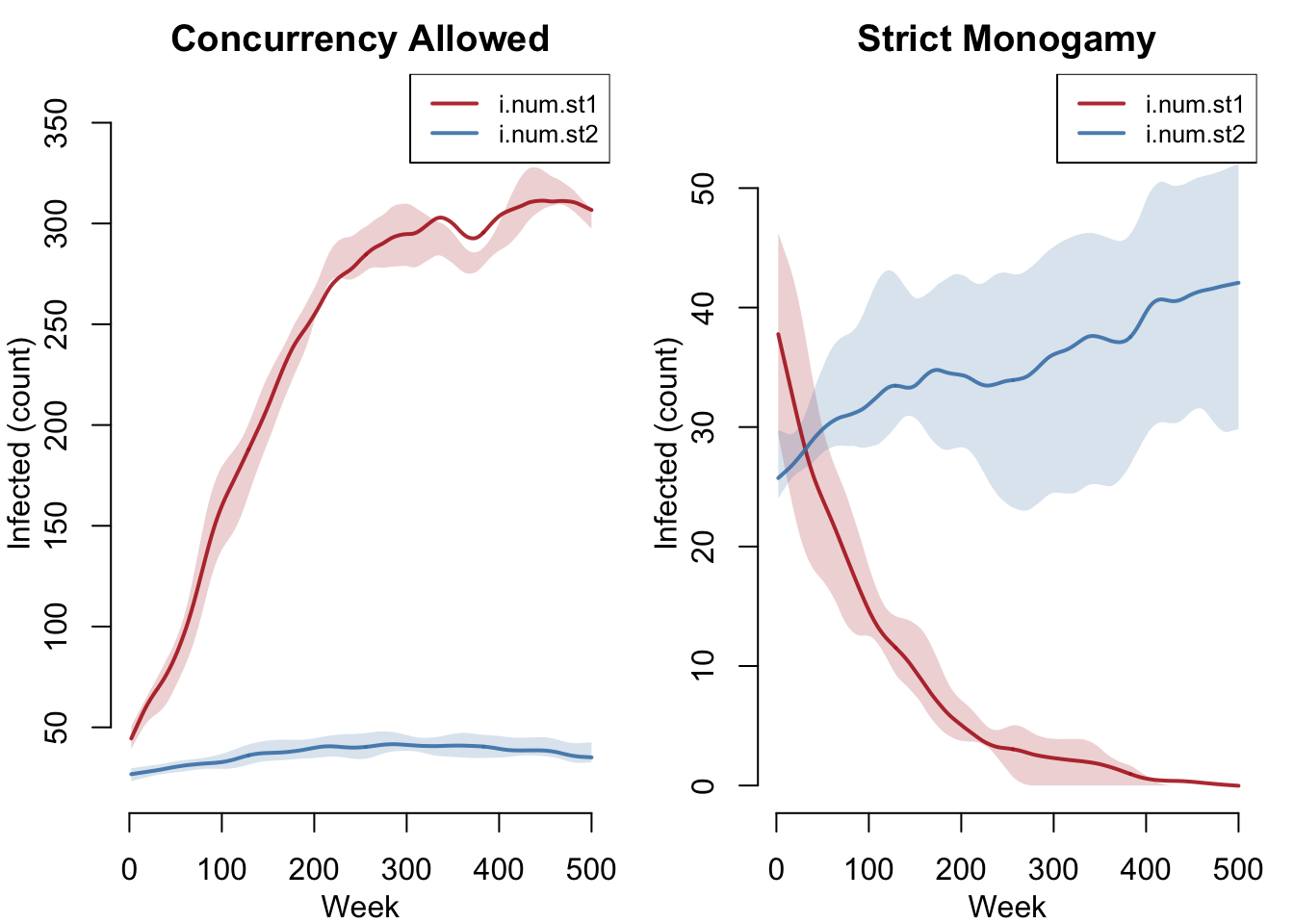

Figure 3: Strain-specific prevalence under the two network structures. Left: concurrency allowed (strain 1 dominates). Right: strict monogamy (strain 2 dominates). Same disease parameters, different network structure, opposite outcomes.

Total Prevalence Comparison

How does total disease burden compare across network structures? Both network models produce endemic disease, but the strain composition and overall prevalence differ.

par(mfrow = c(1, 1), mar = c(3, 3, 2, 1), mgp = c(2, 1, 0))
plot(sim.mod1, y = "prev",
     main = "Total Prevalence by Network Structure",
     ylab = "Prevalence (I / N)", xlab = "Week",
     mean.col = "firebrick", mean.lwd = 2, mean.smooth = TRUE,
     qnts.col = "firebrick", qnts.alpha = 0.2, qnts.smooth = TRUE,
     legend = FALSE)
plot(sim.mod2, y = "prev",
     mean.col = "steelblue", mean.lwd = 2, mean.smooth = TRUE,
     qnts.col = "steelblue", qnts.alpha = 0.2, qnts.smooth = TRUE,
     legend = FALSE, add = TRUE)
legend("topright",
       legend = c("Concurrency Allowed", "Strict Monogamy"),
       col = c("firebrick", "steelblue"), lwd = 2, bty = "n")

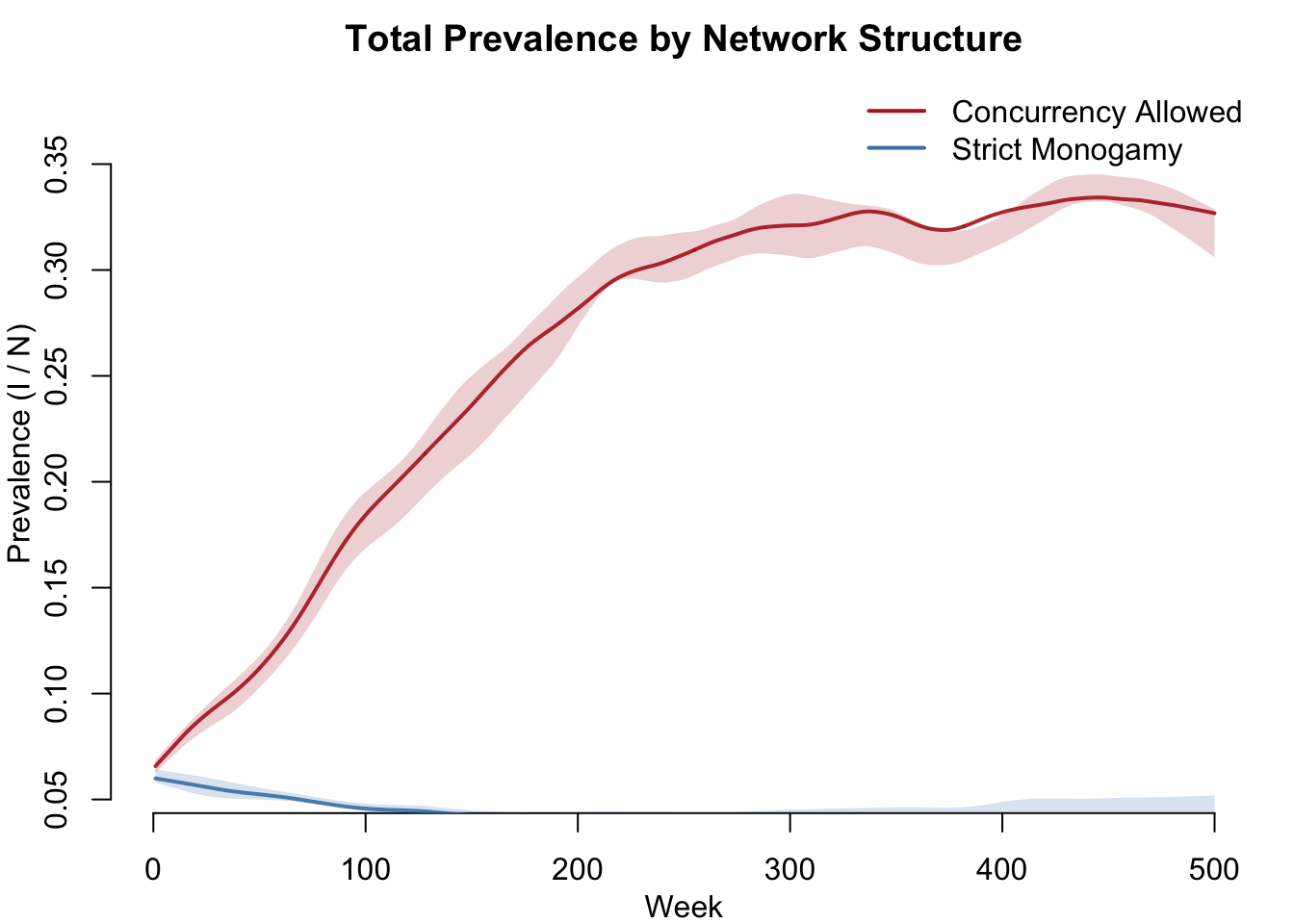

Figure 4: Total prevalence (proportion infected by either strain) under concurrency (red) vs. monogamy (blue).

Incidence by Strain

New infections per week, broken out by strain and network model. This shows the transmission velocity of each strain under each network structure.

par(mfrow = c(1, 2), mar = c(3, 3, 2, 1), mgp = c(2, 1, 0))
plot(sim.mod1, y = c("si.flow", "si.flow.st2"),
     main = "Incidence: Concurrency",
     ylab = "New Infections / Week", xlab = "Week",
     mean.col = c("firebrick", "steelblue"),
     mean.lwd = 2, mean.smooth = TRUE,
     qnts = FALSE, legend = TRUE)
plot(sim.mod2, y = c("si.flow", "si.flow.st2"),
     main = "Incidence: Monogamy",
     ylab = "New Infections / Week", xlab = "Week",
     mean.col = c("firebrick", "steelblue"),
     mean.lwd = 2, mean.smooth = TRUE,
     qnts = FALSE, legend = TRUE)

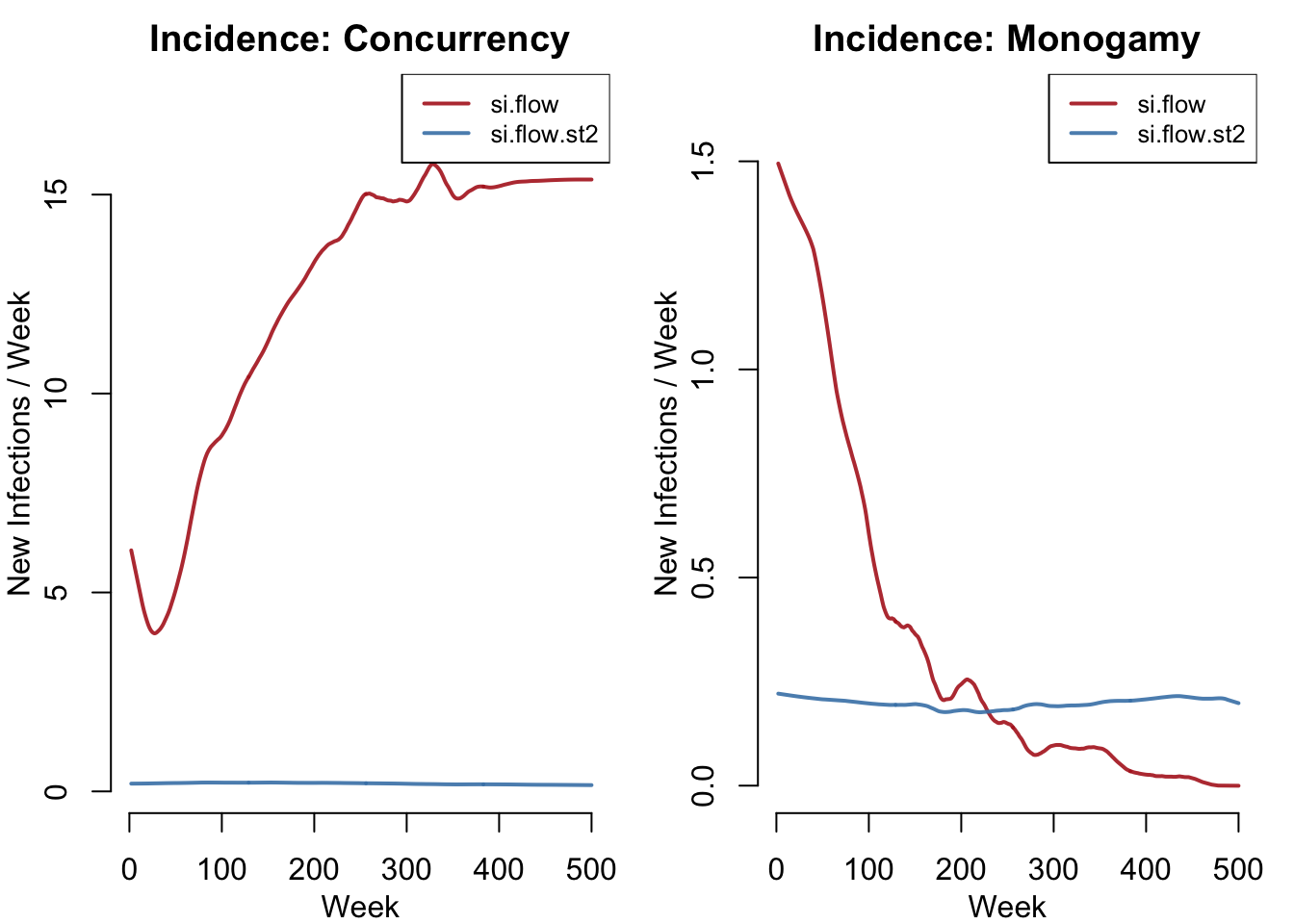

Figure 5: Weekly new infections by strain. Left: with concurrency, strain 1 generates far more new infections. Right: under monogamy, strain 2 produces a steady trickle while strain 1 fades.

Summary Table

df1 <- as.data.frame(sim.mod1)
df2 <- as.data.frame(sim.mod2)

# Use last 20% of timesteps to estimate equilibrium
late1 <- df1$time > nsteps * 0.8
late2 <- df2$time > nsteps * 0.8

knitr::kable(data.frame(
  Metric = c("Equilibrium prevalence (total)",
             "Strain 1 prevalence",
             "Strain 2 prevalence",
             "Dominant strain",
             "Cumulative infections (St1)",
             "Cumulative infections (St2)"),
  Concurrency = c(
    round(mean(df1$prev[late1], na.rm = TRUE), 3),
    round(mean(df1$prev.st1[late1], na.rm = TRUE), 3),
    round(mean(df1$prev.st2[late1], na.rm = TRUE), 3),
    ifelse(mean(df1$i.num.st1[late1], na.rm = TRUE) >
             mean(df1$i.num.st2[late1], na.rm = TRUE),
           "Strain 1", "Strain 2"),
    round(mean(tapply(df1$si.flow, df1$sim, sum, na.rm = TRUE))),
    round(mean(tapply(df1$si.flow.st2, df1$sim, sum, na.rm = TRUE)))
  ),
  Monogamy = c(
    round(mean(df2$prev[late2], na.rm = TRUE), 3),
    round(mean(df2$prev.st1[late2], na.rm = TRUE), 3),
    round(mean(df2$prev.st2[late2], na.rm = TRUE), 3),
    ifelse(mean(df2$i.num.st1[late2], na.rm = TRUE) >
             mean(df2$i.num.st2[late2], na.rm = TRUE),
           "Strain 1", "Strain 2"),
    round(mean(tapply(df2$si.flow, df2$sim, sum, na.rm = TRUE))),
    round(mean(tapply(df2$si.flow.st2, df2$sim, sum, na.rm = TRUE)))
  )
))

Table 1

Metric	Concurrency	Monogamy
Equilibrium prevalence (total)	0.332	0.041
Strain 1 prevalence	0.31	0
Strain 2 prevalence	0.038	0.041
Dominant strain	Strain 1	Strain 2
Cumulative infections (St1)	6229	176
Cumulative infections (St2)	99	99

Sensitivity Analysis: Concurrency Gradient

Try It Yourself

The code below sweeps across 13 concurrency levels, re-estimating the network and running the epidemic at each level. This takes several minutes to run. The code is shown for reference — copy it into an interactive R session to explore the results.

formation.mod3 <- ~edges + concurrent
concties.mod3 <- seq(0, 120, 10)
est.mod3 <- list()
sim.mod3 <- list()

for (i in seq_along(concties.mod3)) {
  target.stats.mod3 <- c(300, concties.mod3[i])
  est.mod3[[i]] <- suppressMessages(
    netest(nw, formation.mod3, target.stats.mod3, coef.diss)
  )
  sim.mod3[[i]] <- netsim(est.mod3[[i]], param, init, control)
}

# Extract equilibrium strain prevalence (last timestep mean)
i.num.st1.final <- sapply(seq_along(concties.mod3), function(x) {
  tail(as.data.frame(sim.mod3[[x]], out = "mean")[["i.num.st1"]], 1)
})
i.num.st2.final <- sapply(seq_along(concties.mod3), function(x) {
  tail(as.data.frame(sim.mod3[[x]], out = "mean")[["i.num.st2"]], 1)
})

# Plot the gradient
par(mfrow = c(1, 1), mar = c(3, 3, 2, 1), mgp = c(2, 1, 0))
plot(concties.mod3, i.num.st1.final, type = "b", pch = 19,
     col = "firebrick", lwd = 2,
     xlab = "Nodes with Concurrent Ties",
     ylab = "Equilibrium Infected (count)",
     main = "Strain Competition vs. Concurrency",
     ylim = c(0, max(c(i.num.st1.final, i.num.st2.final), na.rm = TRUE)))
points(concties.mod3, i.num.st2.final, type = "b", pch = 19,
       col = "steelblue", lwd = 2)
legend("topleft",
       legend = c("Strain 1 (acute)", "Strain 2 (chronic)"),
       col = c("firebrick", "steelblue"), lwd = 2, pch = 19, bty = "n")

Parameters

Transmission

Parameter	Description	Default
`inf.prob`	Per-act transmission probability (strain 1)	0.5
`inf.prob.st2`	Per-act transmission probability (strain 2)	0.01
`act.rate`	Acts per partnership per week	2

Recovery

Parameter	Description	Default
`rec.rate`	Recovery rate, strain 1 (mean ~20 weeks)	0.05
`rec.rate.st2`	Recovery rate, strain 2 (mean ~200 weeks)	0.005

Strain Initialization

Parameter	Description	Default
`pct.st2`	Probability initial infection is strain 2	0.5

Optional Intervention

Parameter	Description	Default
`inter.eff`	Intervention efficacy (reduces transmission by this factor)	Not set
`inter.start`	Timestep when intervention begins	Not set

Network

Parameter	Description	Default
Population size	Number of nodes	1000
Target edges	Mean concurrent partnerships	300
Concurrency	Varies by model (0 or ~120)	—
Partnership duration	Mean edge duration (weeks)	50

Module Execution Order

resim_nets → initStrain → infection → recovery → prevalence

The initStrain module runs first (but only operates at the first timestep). Infection runs before recovery so that newly infected individuals can be tracked before any recovery occurs in the same timestep.

Next Steps

Add co-infection: Allow individuals to carry both strains simultaneously, introducing within-host competition and superinfection dynamics
Model strain mutation: Allow strain 1 to mutate into strain 2 (or vice versa), exploring the evolution of virulence
Add vital dynamics: Introduce births and deaths to study longer-term strain competition — see SI with Vital Dynamics
Vary the trade-off: Explore different points on the infectiousness-duration trade-off curve to map the full parameter space of competitive outcomes
Add a treatment intervention: Differential treatment efficacy across strains connects to antimicrobial resistance — see Test and Treat
Extend to three or more strains: Generalize the framework to model multi-strain competition with more complex fitness landscapes
