Overview

This example demonstrates how to conduct a cost-effectiveness analysis (CEA) within EpiModel using an SI (susceptible–infected) epidemic model with vital dynamics. The two strategies compared are: (1) a baseline scenario with no intervention, and (2) a universal prophylaxis intervention (analogous to pre-exposure prophylaxis for HIV) that halves the per-act probability of infection. The analysis tracks population-level clinical care costs and quality-adjusted life years (QALYs), applies standard economic discounting, and computes incremental cost-effectiveness ratios (ICERs) to determine whether the intervention represents a cost-effective investment.

A key structural feature of this model is the distinction between individuals who are alive (active == 1) and those who are sexually active (active.s == 1). Individuals over age 65 cease sexual activity but continue to accrue costs and QALYs until death. The model also implements a two-phase time horizon: a main analytic horizon during which transmission, arrivals, and network dynamics operate normally, followed by an end horizon phase where only cost/QALY tracking continues for individuals still alive. This captures the residual economic impact of the epidemic beyond the intervention period.

The example presents two equivalent approaches for computing CEA outcomes: an internal approach using a custom costeffect module that tracks costs and QALYs during the simulation, and an external approach that reconstructs the same quantities post-hoc from compartment counts in the simulation output. Both feed into the dampack package for ICER calculation and visualization.

Download standalone scripts

model.R — Main simulation script
module-fx.R — Custom module functions

Model Structure

Compartment	Label	Description
Susceptible	S	Not infected; at risk through network contact; accrues lower clinical costs
Infectious	I	Infected and capable of transmitting; accrues higher clinical costs and reduced QALYs

flowchart LR
    in(( )) -->|"arrival<br/>(age 16)"| S
    S["<b>S</b><br/>Susceptible<br/>cost = $150/wk<br/>QALY = 1.00/yr"] -->|"infection<br/>(si.flow)"| I["<b>I</b><br/>Infectious<br/>cost = $300/wk<br/>QALY = 0.75/yr"]
    S -->|"age-specific<br/>mortality"| out1(( ))
    I -->|"age-specific<br/>mortality"| out2(( ))
    S -.->|"age >= 65<br/>sexual retirement"| S
    I -.->|"age >= 65<br/>sexual retirement"| I

    style S fill:#3498db,color:#fff
    style I fill:#e74c3c,color:#fff
    style in fill:none,stroke:none
    style out1 fill:none,stroke:none
    style out2 fill:none,stroke:none

Six custom modules implement the model processes:

Aging (aging): Increments age by 1/52 years per weekly timestep and tracks mean population age.
Departures (dfunc): Age-specific mortality using a three-tier rate structure. Individuals over 65 who survive are flagged as sexually inactive but remain alive for cost/QALY tracking.
Arrivals (afunc): New susceptible nodes enter at age 16. Arrivals are disabled once the end horizon is reached.
Infection (ifunc): SI transmission over discordant edges, with an optional transmission probability reduction when the prophylaxis intervention is active. Disabled at the end horizon.
Cost-Effectiveness (costeffect): Tracks weekly population costs and QALYs by health state, applies age-based QALY decrements and time-discounting, and records both discounted and undiscounted totals.
Network Resimulation (resim_nets): Uses EpiModel’s built-in module. Network resimulation is disabled at the end horizon via control.updater.list to accelerate computation.

Setup

suppressMessages(library(EpiModel))

set.seed(120792)

nsims <- 5
ncores <- 5
nsteps <- 256

Vital Dynamics Data

Age-specific mortality rates use a simplified three-tier structure: a baseline annual rate of 0.02 for ages 0–84, 50x that rate for ages 85–99, and 100x for age 100+. These are converted from annual to weekly rates.

ages <- 0:100
dr <- 0.02
1death_rate_pp_pw <- c(dr / 52,
                      50 * dr / 52,
                      100 * dr / 52)

2age_spans <- c(85, 15, 1)
dr_vec <- rep(death_rate_pp_pw, times = age_spans)

1: Three tiers of weekly mortality: ages 0–84 (low), 85–99 (high), 100+ (very high).
2: Expand the three rates into a 101-element vector indexed by age.

Custom Modules

Cost-Effectiveness Module

Calculates population-level costs and QALYs at each timestep, applying health-state-specific rates, age-based QALY decrements, intervention costs, and standard economic discounting.

costeffect <- function(dat, at) {

  cea.start <- get_param(dat, "cea.start")
  if (at < cea.start) {
1    return(dat)
  }

  active <- get_attr(dat, "active")
  age <- get_attr(dat, "age")
  status <- get_attr(dat, "status")

  sus.cost <- get_param(dat, "sus.cost")
  inf.cost <- get_param(dat, "inf.cost")
  sus.qaly <- get_param(dat, "sus.qaly")
  inf.qaly <- get_param(dat, "inf.qaly")
  age.decrement <- get_param(dat, "age.decrement")
  disc.rate <- get_param(dat, "disc.rate")
  inter.cost <- get_param(dat, "inter.cost", override.null.error = TRUE)
  inter.start <- get_param(dat, "inter.start", override.null.error = TRUE)
  end.horizon <- get_param(dat, "end.horizon", override.null.error = TRUE)

  idsSus <- which(active == 1 & status == "s")
  idsInf <- which(active == 1 & status == "i")

  # Clinical care costs by health state
  pop.sus.cost <- length(idsSus) * sus.cost
  pop.inf.cost <- length(idsInf) * inf.cost

  # Intervention costs spread uniformly from start to end horizon
2  if (!is.null(inter.start) && at < end.horizon) {
    inter.cost <- inter.cost / (end.horizon - inter.start)
  } else {
    inter.cost <- 0
  }

  # QALYs by health state with age-based decrement, converted to weekly
  pop.sus.qaly <- sum((age[idsSus] * age.decrement + sus.qaly) / 52,
                      na.rm = TRUE)
  pop.inf.qaly <- sum((age[idsInf] * age.decrement + inf.qaly) / 52,
                      na.rm = TRUE)

  pop.cost <- pop.sus.cost + pop.inf.cost + inter.cost
  pop.qaly <- pop.sus.qaly + pop.inf.qaly

  # Standard discounting: 1/(1+r)^t where t is in years
  t <- at - cea.start
3  pop.cost.disc <- pop.cost * 1 / (1 + disc.rate) ^ (t / 52)
  pop.qaly.disc <- pop.qaly * 1 / (1 + disc.rate) ^ (t / 52)

  dat <- set_epi(dat, "cost", at, pop.cost)
  dat <- set_epi(dat, "qaly", at, pop.qaly)
  dat <- set_epi(dat, "cost.disc", at, pop.cost.disc)
  dat <- set_epi(dat, "qaly.disc", at, pop.qaly.disc)

  return(dat)
}

1: Module skips all processing before the CEA analytic horizon begins.
2: Intervention costs are spread uniformly across the main analytic period (from inter.start to end.horizon), then set to zero during the end horizon phase.
3: Discounting uses the standard formula 1 / (1 + r)^t, converting weekly timesteps to annual units by dividing by 52.

Aging Module

Increments each living node’s age by 1/52 years per timestep and records the population mean age as a summary statistic used by the external CEA calculation.

aging <- function(dat, at) {

  active <- get_attr(dat, "active")
  idsActive <- which(active == 1)
  age <- get_attr(dat, "age")
1  age[idsActive] <- age[idsActive] + 1 / 52
  dat <- set_attr(dat, "age", age)

  dat <- set_epi(dat, "meanAge", at, mean(age[idsActive], na.rm = TRUE))

  return(dat)
}

1: Only living individuals (active == 1) age; deceased nodes retain their age at death.

Departure Module

Simulates age-specific mortality and handles sexual retirement for individuals reaching age 65. Retired individuals remain alive (active == 1) and continue to accrue costs and QALYs, but are removed from the sexual network (active.s == 0).

dfunc <- function(dat, at) {

  active <- get_attr(dat, "active")
  active.s <- get_attr(dat, "active.s")
  exitTime <- get_attr(dat, "exitTime")
  age <- get_attr(dat, "age")

  death.rates <- get_param(dat, "death.rates")

  idsElig <- which(active == 1)
  nElig <- length(idsElig)
  nDeaths <- 0

  if (nElig > 0) {
1    whole_ages_of_elig <- pmin(ceiling(age[idsElig]), 101)
    death_rates_of_elig <- death.rates[whole_ages_of_elig]

    vecDeaths <- which(rbinom(nElig, 1,
                              1 - exp(-death_rates_of_elig)) == 1)
    idsDeaths <- idsElig[vecDeaths]
    nDeaths <- length(idsDeaths)

    if (nDeaths > 0) {
      active.s[idsDeaths] <- 0
2      active[idsDeaths] <- 0
      exitTime[idsDeaths] <- at
    }

    # Sexual retirement at age 65
    idsRetire <- setdiff(which(age >= 65 & active.s == 1),
3                         idsDeaths)
    active.s[idsRetire] <- 0
  }

  dat <- set_attr(dat, "active.s", active.s)
  dat <- set_attr(dat, "active", active)
  dat <- set_attr(dat, "exitTime", exitTime)

  dat <- set_epi(dat, "d.flow", at, nDeaths)

  return(dat)
}

1: Map continuous age to the 101-element mortality rate vector. pmin(..., 101) caps ages above 100.
2: Deceased nodes have both active and active.s set to 0, fully removing them from all tracking.
3: Surviving individuals aged 65+ retire from sexual activity but remain alive for cost/QALY tracking.

Arrival Module

Adds new susceptible nodes at age 16. The module is disabled once the end horizon is reached to freeze population dynamics during the residual tracking phase.

afunc <- function(dat, at) {

  end.horizon <- get_param(dat, "end.horizon")
  if (at >= end.horizon) {
1    return(dat)
  }

  n <- sum(get_attr(dat, "active") == 1)
  a.rate <- get_param(dat, "arrival.rate")

  nArrivalsExp <- n * a.rate
  nArrivals <- rpois(1, nArrivalsExp)

  if (nArrivals > 0) {
    dat <- append_core_attr(dat, at, nArrivals)
    dat <- append_attr(dat, "status", "s", nArrivals)
    dat <- append_attr(dat, "infTime", NA, nArrivals)
2    dat <- append_attr(dat, "age", 16, nArrivals)
    dat <- append_attr(dat, "active.s", 1, nArrivals)
  }

  dat <- set_epi(dat, "a.flow", at, nArrivals)

  return(dat)
}

1: After the end horizon, no new individuals enter — only residual cost/QALY tracking continues.
2: New arrivals enter at age 16 as sexually active susceptibles.

Infection Module

Implements SI transmission over discordant edges. When the prophylaxis intervention is active (after inter.start), the per-act transmission probability is reduced by inter.eff. The module is disabled at the end horizon.

ifunc <- function(dat, at) {

  end.horizon <- get_param(dat, "end.horizon", override.null.error = TRUE)
  if (at >= end.horizon) {
    return(dat)
  }

  active.s <- get_attr(dat, "active.s")
  active <- get_attr(dat, "active")
  status <- get_attr(dat, "status")
  infTime <- get_attr(dat, "infTime")
  inf.prob <- get_param(dat, "inf.prob")
  act.rate <- get_param(dat, "act.rate")
  inter.eff <- get_param(dat, "inter.eff", override.null.error = TRUE)
  inter.start <- get_param(dat, "inter.start", override.null.error = TRUE)

  idsActive.s <- which(active.s == 1)
  idsInf <- which(active == 1 & status == "i")
  nActive <- sum(active == 1)
  nElig <- length(idsInf)
  nInf <- 0

  if (nElig > 0 && nElig < nActive) {
    del <- discord_edgelist(dat, at, network = 1)
    if (!(is.null(del))) {
      # Only sexually active partners can transmit
      del <- del[which(del$sus %in% idsActive.s &
1                       del$inf %in% idsActive.s), ]
      del$infDur <- at - infTime[del$inf]
      del$infDur[del$infDur == 0] <- 1
      linf.prob <- length(inf.prob)
      del$transProb <- ifelse(del$infDur <= linf.prob,
                              inf.prob[del$infDur],
                              inf.prob[linf.prob])
      if (!is.null(inter.eff) && at >= inter.start) {
2        del$transProb <- del$transProb * (1 - inter.eff)
      }
      lact.rate <- length(act.rate)
      del$actRate <- ifelse(del$infDur <= lact.rate,
                            act.rate[del$infDur],
                            act.rate[lact.rate])
3      del$finalProb <- 1 - (1 - del$transProb)^del$actRate
      transmit <- rbinom(nrow(del), 1, del$finalProb)
      del <- del[which(transmit == 1), ]
      idsNewInf <- unique(del$sus)
      status <- get_attr(dat, "status")
      status[idsNewInf] <- "i"
      dat <- set_attr(dat, "status", status)
      infTime[idsNewInf] <- at
      dat <- set_attr(dat, "infTime", infTime)
      nInf <- length(idsNewInf)
    }
  }

  if (nInf > 0) {
    dat <- set_transmat(dat, del, at)
  }
  dat <- set_epi(dat, "si.flow", at, nInf)
  return(dat)
}

1: Edges involving sexually retired individuals (active.s == 0) are filtered out — they cannot transmit or acquire infection.
2: When the prophylaxis intervention is active, per-act transmission probability is reduced by the factor inter.eff (e.g., 0.50 = 50% reduction).
3: Final transmission probability accounts for multiple acts per partnership per timestep using the binomial complement formula.

Network Model

The network model accounts for the mixed population of sexually active and inactive individuals. The ERGM formation model uses a nodefactor term for active.s to prevent edges from forming with sexually retired individuals.

n <- 500
init.ages <- 16:85
ageVec <- sample(init.ages, n, replace = TRUE)

# Individuals over 65 are sexually inactive
active.sVec <- ifelse(ageVec <= 65, 1, 0)
n.active.s <- length(which(ageVec <= 65))
n.inactive.s <- length(which(ageVec > 65))

nw <- network_initialize(n)
nw <- set_vertex_attribute(nw, "age", ageVec)
nw <- set_vertex_attribute(nw, "active.s", active.sVec)

Formation and Dissolution

# Formation: edges + age mixing + no edges for inactive nodes
formation <- ~edges + absdiff("age") +
1              nodefactor("active.s", levels = 1)

mean_degree <- 0.8
2edges <- mean_degree * (n.active.s / 2)
avg.abs.age.diff <- 1.5
absdiff <- edges * avg.abs.age.diff
3inactive.s.edges <- 0

target.stats <- c(edges, absdiff, inactive.s.edges)

coef.diss <- dissolution_coefs(~offset(edges), 60, mean(dr_vec))
coef.diss

1: nodefactor("active.s", levels = 1) targets active.s == 0 (level 1), constraining sexually inactive nodes to have zero edges.
2: Target edge count is based on only the sexually active subpopulation, not the full network.
3: The target for edges involving inactive individuals is zero, effectively preventing partnership formation with retired nodes.

Dissolution Coefficients
=======================
Dissolution Model: ~offset(edges)
Target Statistics: 60
Crude Coefficient: 4.077537
Mortality/Exit Rate: 0.003560548
Adjusted Coefficient: 4.633544

Network Estimation and Diagnostics

est <- netest(nw, formation, target.stats, coef.diss)

dx <- netdx(est,
            nsims = nsims, ncores = ncores, nsteps = nsteps,
            nwstats.formula = ~edges + absdiff("age") + isolates +
              degree(0:5) + nodefactor("active.s", levels = 1))

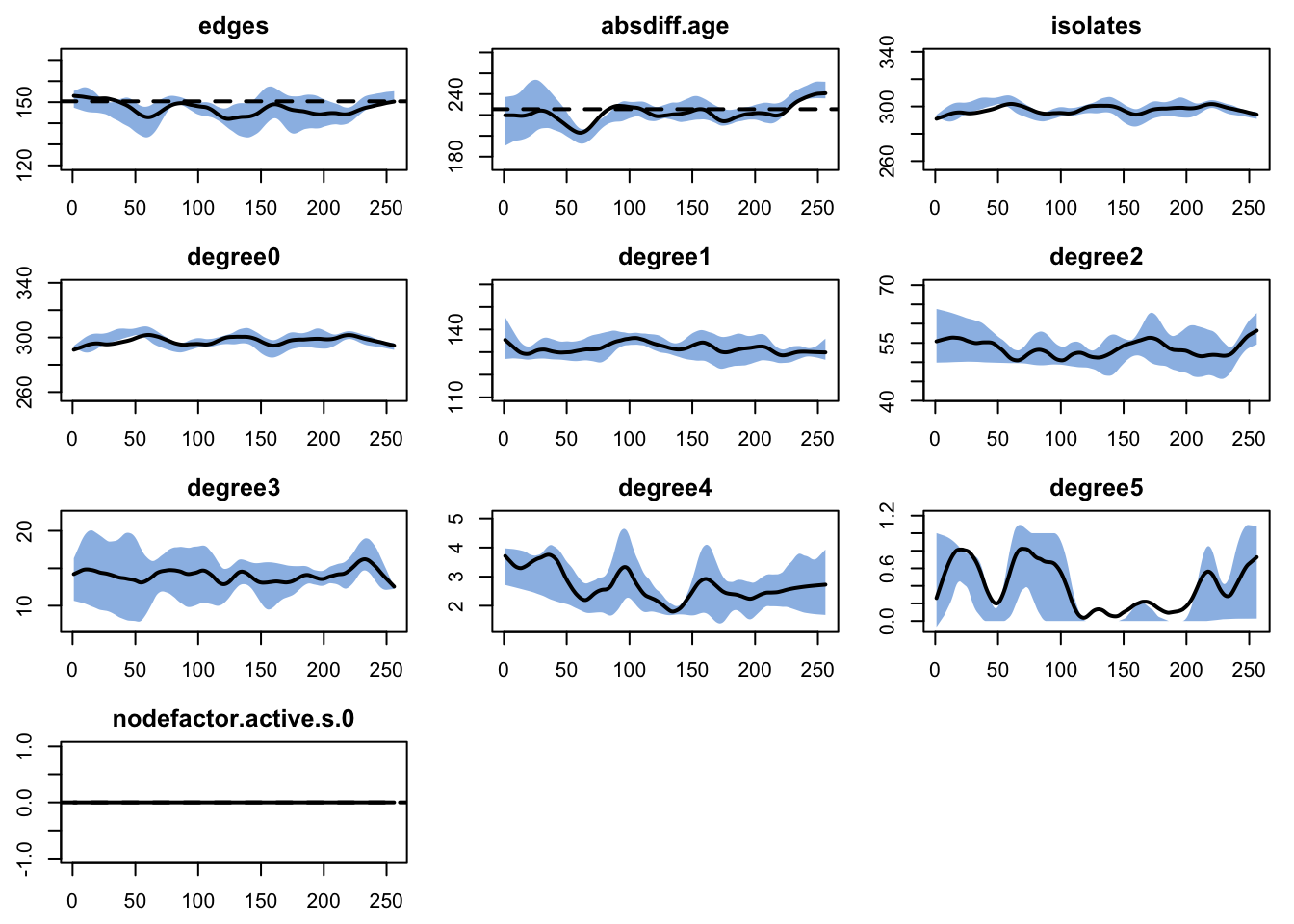

Network Diagnostics
-----------------------
- Simulating 5 networks
- Calculating formation statistics

print(dx)

EpiModel Network Diagnostics
=======================
Diagnostic Method: Dynamic
Simulations: 5
Time Steps per Sim: 256

Formation Diagnostics
-----------------------
                      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means)
edges                  150.4  146.986   -2.270  2.317  -1.474         6.406
absdiff.age            225.6  221.673   -1.741  4.678  -0.840        15.475
isolates                  NA  297.580       NA  1.823      NA         5.952
degree0                   NA  297.580       NA  1.823      NA         5.952
degree1                   NA  131.711       NA  1.051      NA         2.094
degree2                   NA   53.484       NA  1.327      NA         3.779
degree3                   NA   14.095       NA  0.641      NA         2.727
degree4                   NA    2.692       NA  0.171      NA         0.564
degree5                   NA    0.395       NA  0.069      NA         0.100
nodefactor.active.s.0    0.0    0.000      NaN    NaN     NaN         0.000
                      SD(Statistic)
edges                        11.282
absdiff.age                  24.016
isolates                     10.652
degree0                      10.652
degree1                       7.685
degree2                       8.040
degree3                       4.575
degree4                       1.536
degree5                       0.607
nodefactor.active.s.0         0.000

Duration Diagnostics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges     60   61.949    3.248  1.026   1.899         1.962         4.618

Dissolution Diagnostics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges  0.017    0.017   -0.829      0  -0.463             0         0.011

plot(dx)

Figure 1: Network diagnostic plots verifying formation targets are met, including zero edges for sexually inactive nodes.

Epidemic Simulation

Scenario 1: Universal Prophylaxis Intervention

The intervention reduces per-act transmission probability by 50% starting at week 14, with total implementation costs of $500,000 distributed evenly across the main analytic horizon.

end.horizon <- 52 + 14

param_inter <- param.net(
  inf.prob = 0.15,
  death.rates = dr_vec,
  cea.start = 14,
  end.horizon = end.horizon,
  arrival.rate = dr / 52,

  # Intervention parameters
1  inter.eff = 0.50,
  inter.start = 14,
2  inter.cost = 500000,

  # Weekly clinical care costs
  sus.cost = 150,
  inf.cost = 300,

  # Annual QALYs by health state
  sus.qaly = 1.00,
  inf.qaly = 0.75,

  # QALY age decrement and discount rate
  age.decrement = -0.003,
  disc.rate = 0.03
)

init <- init.net(i.num = 50)

control.updater.list <- list(
  list(
    at = end.horizon,
    control = list(
3      resimulate.network = FALSE
    )
  )
)

control <- control.net(
  type = NULL,
  nsims = nsims,
  ncores = ncores,
  nsteps = nsteps,
  aging.FUN = aging,
  departures.FUN = dfunc,
  arrivals.FUN = afunc,
  infection.FUN = ifunc,
  cea.FUN = costeffect,
  resim_nets.FUN = resim_nets,
  resimulate.network = TRUE,
  control.updater.list = control.updater.list,
  verbose = TRUE
)

sim_inter <- netsim(est, param_inter, init, control)
print(sim_inter)

1: 50% reduction in per-act transmission probability when the intervention is active.
2: Total intervention cost of $500,000 is spread evenly from inter.start to end.horizon.
3: At the end horizon, network resimulation is turned off via control.updater.list, freezing the network and greatly accelerating computation during residual tracking.

EpiModel Simulation
=======================
Model class: netsim

Simulation Summary
-----------------------
Model type:
No. simulations: 5
No. time steps: 256
No. NW groups: 1

Fixed Parameters
---------------------------
inf.prob = 0.15
inter.eff = 0.5
inter.start = 14
death.rates = 0.0003846154 0.0003846154 0.0003846154 0.0003846154 0.0003846154
0.0003846154 0.0003846154 0.0003846154 0.0003846154 0.0003846154 ...
cea.start = 14
end.horizon = 66
arrival.rate = 0.0003846154
inter.cost = 5e+05
sus.cost = 150
inf.cost = 300
sus.qaly = 1
inf.qaly = 0.75
age.decrement = -0.003
disc.rate = 0.03
act.rate = 1
groups = 1

Model Functions
-----------------------
initialize.FUN
resim_nets.FUN
summary_nets.FUN
infection.FUN
departures.FUN
arrivals.FUN
nwupdate.FUN
prevalence.FUN
verbose.FUN
aging.FUN
cea.FUN

Model Output
-----------------------
Variables: s.num i.num num meanAge si.flow d.flow a.flow
cost qaly cost.disc qaly.disc
Networks: sim1 ... sim5
Transmissions: sim1 ... sim5

Formation Statistics
-----------------------
                      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means)
edges                  150.4  207.018   37.645  7.084   7.992        12.183
absdiff.age            225.6  303.616   34.582 14.130   5.521        27.948
nodefactor.active.s.0    0.0   10.073      Inf  0.686  14.675         2.835
                      SD(Statistic)
edges                        24.344
absdiff.age                  46.829
nodefactor.active.s.0         4.433


Duration Statistics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges     60   75.479   25.798  3.522   4.394         3.313        11.274

Dissolution Statistics
-----------------------
      Target Sim Mean Pct Diff Sim SE Z Score SD(Sim Means) SD(Statistic)
edges  0.017     0.01  -38.113      0 -30.912             0         0.008

Scenario 2: No Intervention Baseline

The same model without any prophylaxis intervention. Clinical care costs and QALYs are still tracked from cea.start onward.

param_bl <- param.net(
  inf.prob = 0.15,
  death.rates = dr_vec,
  end.horizon = end.horizon,
  cea.start = 14,
  arrival.rate = dr / 52,

  sus.cost = 150,
  inf.cost = 300,
  sus.qaly = 1.00,
  inf.qaly = 0.75,

  age.decrement = -0.003,
  disc.rate = 0.03
)

sim_bl <- netsim(est, param_bl, init, control)

Analysis

Epidemic Dynamics

par(mfrow = c(1, 3), mar = c(3, 3, 2, 1), mgp = c(2, 1, 0))
plot(sim_inter, y = "d.flow", mean.smooth = TRUE, qnts = 1,
     main = "Departures")
plot(sim_inter, y = "a.flow", mean.smooth = TRUE, qnts = 1,
     main = "Arrivals")
plot(sim_inter, y = "si.flow", mean.smooth = TRUE, qnts = 1,
     main = "Infections")

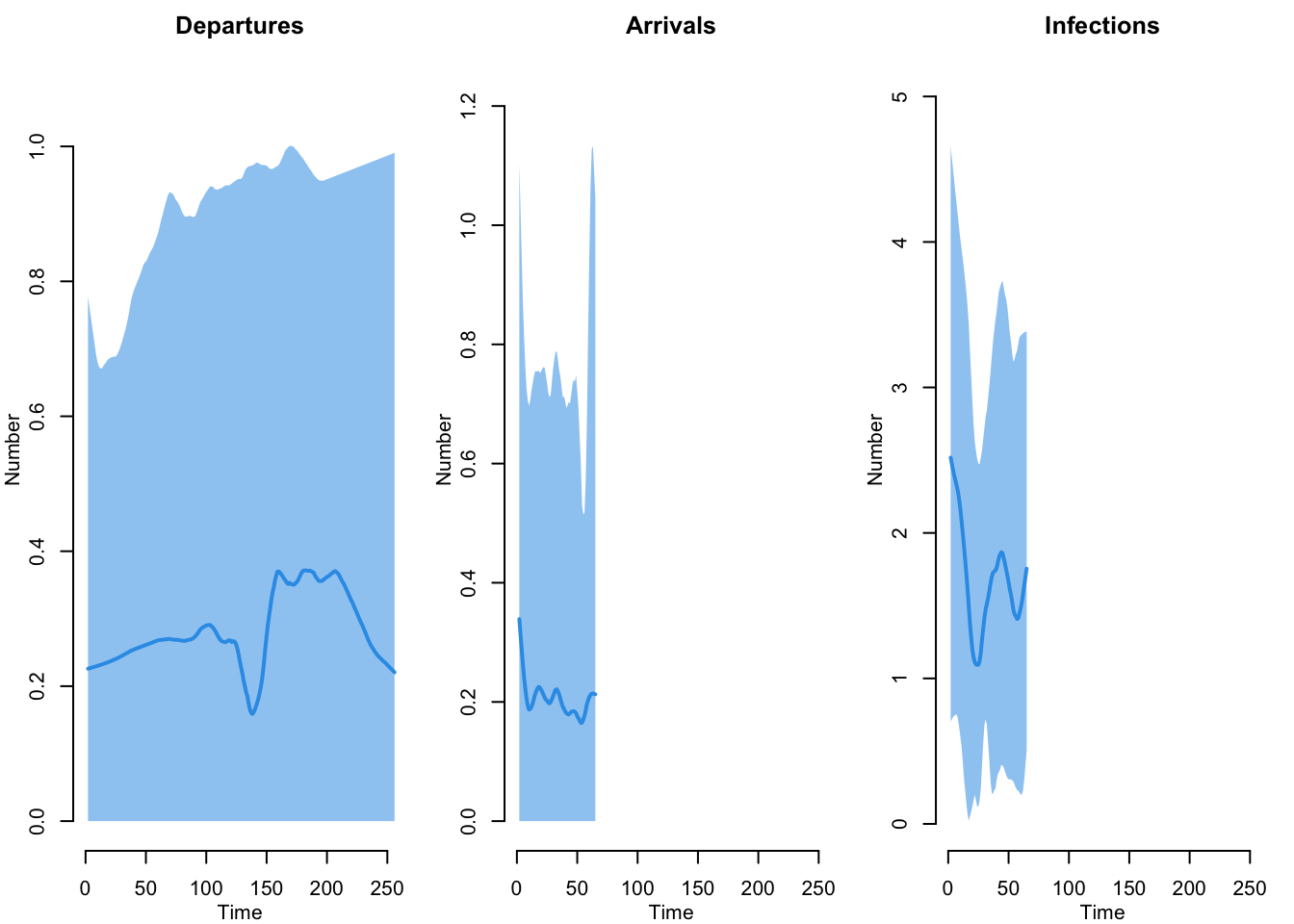

Figure 2: Departures, arrivals, and new infections per week under the prophylaxis intervention scenario.

Costs and QALYs Over Time

par(mfrow = c(2, 2), mar = c(3, 3, 2, 1), mgp = c(2, 1, 0))
plot(sim_inter, y = "cost", mean.smooth = TRUE, qnts = 1,
     main = "Costs (undiscounted)")
plot(sim_inter, y = "qaly", mean.smooth = TRUE, qnts = 1,
     main = "QALYs (undiscounted)")
plot(sim_inter, y = "cost.disc", mean.smooth = TRUE, qnts = 1,
     main = "Costs (discounted)")
plot(sim_inter, y = "qaly.disc", mean.smooth = TRUE, qnts = 1,
     main = "QALYs (discounted)")

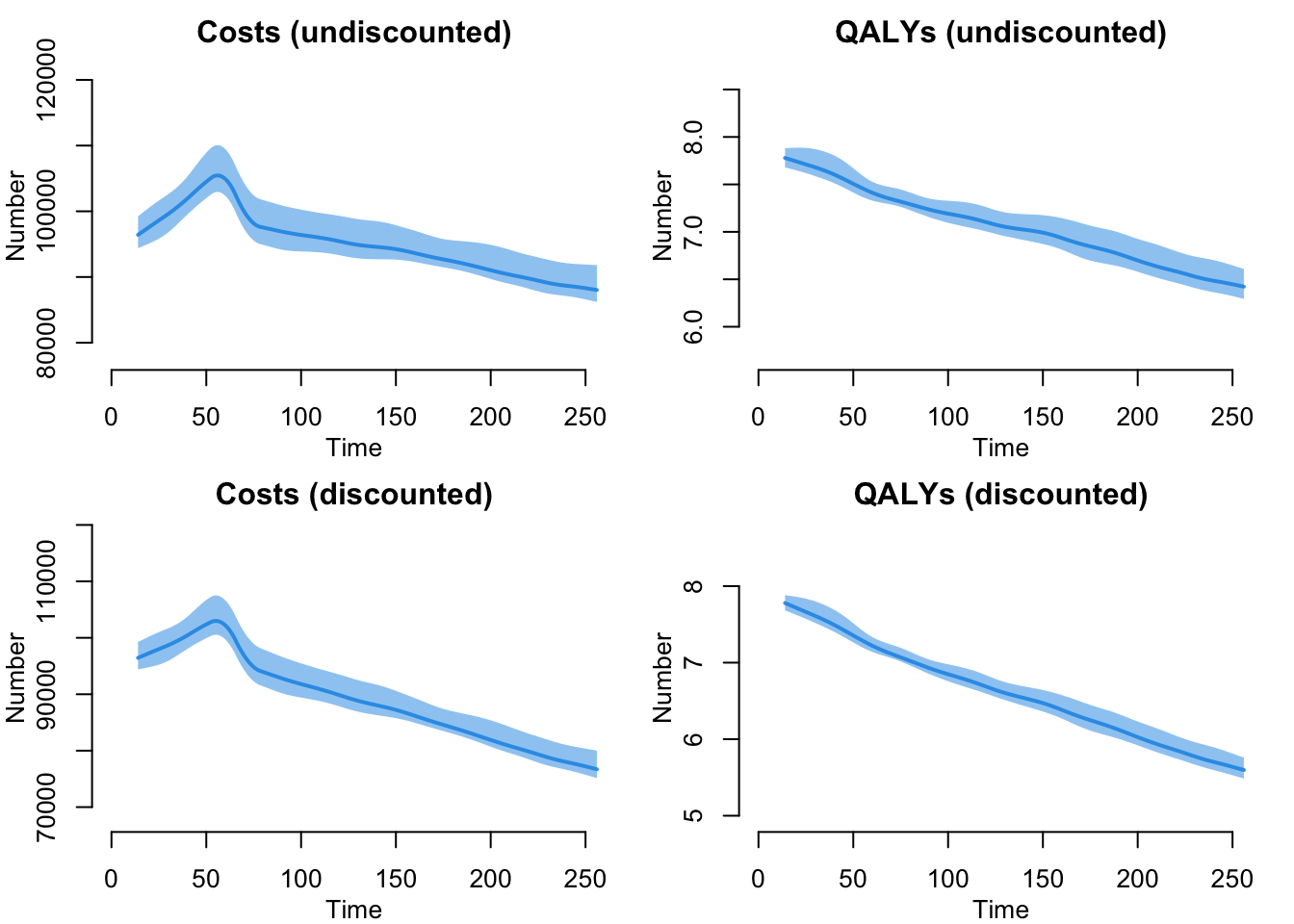

Figure 3: Weekly population costs and QALYs, both undiscounted and discounted, under the prophylaxis intervention. Discounting reduces the present value of future outcomes.

Cost-Effectiveness Analysis

This section requires the dampack package, which provides functions for computing and visualizing ICERs.

library(dampack)

Approach 1: Built-in Module Output

The costeffect module tracked discounted costs and QALYs at each timestep. Summing these across the full simulation gives cumulative outcomes per strategy.

cost_bl <- as.data.frame(sim_bl, out = "mean")$cost.disc
qaly_bl <- as.data.frame(sim_bl, out = "mean")$qaly.disc
cost_inter <- as.data.frame(sim_inter, out = "mean")$cost.disc
qaly_inter <- as.data.frame(sim_inter, out = "mean")$qaly.disc

cost <- c(sum(cost_bl, na.rm = TRUE),
          sum(cost_inter, na.rm = TRUE))
effect <- c(sum(qaly_bl, na.rm = TRUE),
            sum(qaly_inter, na.rm = TRUE))
strategies <- c("No Intervention", "Universal Prophylaxis")

icer_internal <- calculate_icers(cost = cost,
                                 effect = effect,
                                 strategies = strategies)
icer_internal

               Strategy     Cost   Effect Inc_Cost Inc_Effect ICER Status
1 Universal Prophylaxis 21625619 1603.287       NA         NA   NA     ND
2       No Intervention 22018762 1535.395       NA         NA   NA      D

plot(icer_internal)

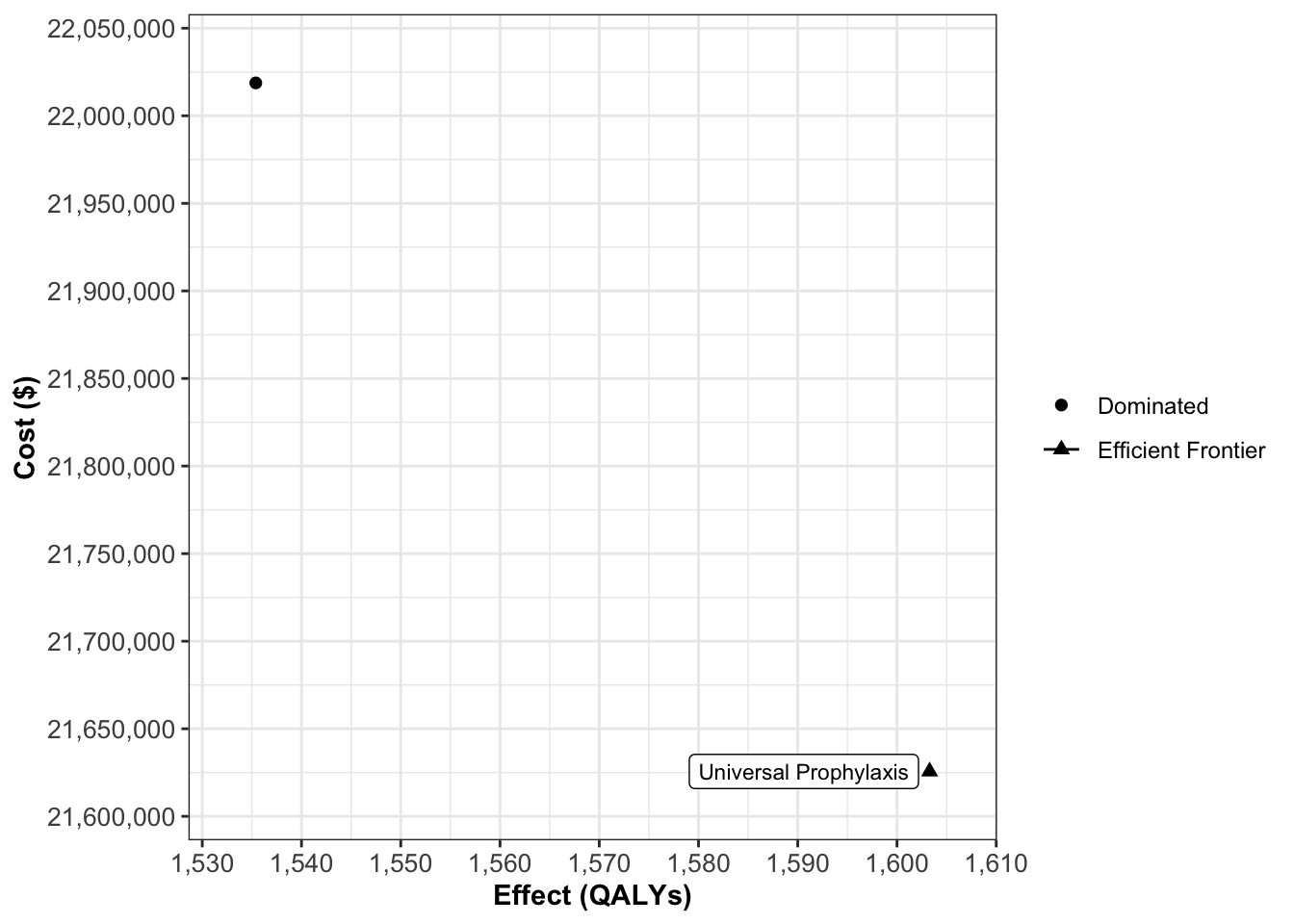

Figure 4: Cost-effectiveness plane showing the two strategies and the ICER frontier computed from the built-in module output.

Approach 2: Post-hoc Reconstruction

The same CEA calculation performed externally using compartment counts (s.num, i.num) extracted from simulation output. This demonstrates that a custom module is not strictly necessary — useful when adding CEA to an existing model without modifying modules. Results should match Approach 1 exactly.

calc_outcomes <- function(sim, intervention) {

  end.horizon <- 52 + 14
  sus.cost <- 150
  inf.cost <- 300
  sus.qaly <- 1.00
  inf.qaly <- 0.75
  age.decrement <- -0.003
  disc.rate <- 0.03
  cea.start <- 14
  nsteps <- 104
  inter.cost <- 500000

  # Extract compartment counts and multiply by per-person rates
  pop.sus.cost <- unstack(as.data.frame(sim),
                          s.num ~ sim)[(cea.start:nsteps) - 1, ] * sus.cost
  pop.inf.cost <- unstack(as.data.frame(sim),
                          i.num ~ sim)[(cea.start:nsteps) - 1, ] * inf.cost
  pop.sus.qaly <- unstack(as.data.frame(sim),
                          s.num ~ sim)[(cea.start:nsteps) - 1, ] * sus.qaly
  pop.inf.qaly <- unstack(as.data.frame(sim),
                          i.num ~ sim)[(cea.start:nsteps) - 1, ] * inf.qaly

  # Mean age and population size for age-dependent QALY decrement
  meanAge <- unstack(as.data.frame(sim),
                     meanAge ~ sim)[(cea.start:nsteps), ]
  pop.num <- unstack(as.data.frame(sim),
                     num ~ sim)[(cea.start:nsteps) - 1, ]

  # Intervention cost spread evenly across analytic horizon
  if (intervention == TRUE) {
    inter.cost.vec <- c(rep(inter.cost / (end.horizon - cea.start),
                            end.horizon - cea.start),
                        rep(0, nsteps - end.horizon + 1))
  } else {
    inter.cost.vec <- rep(0, nsteps - cea.start + 1)
  }

  # Combine age decrement, health-state QALYs, and costs
  pop.qaly <- ((meanAge * pop.num * age.decrement) +
                 pop.sus.qaly + pop.inf.qaly) / 52
  pop.cost <- (pop.sus.cost + pop.inf.cost + inter.cost.vec)

  # Discount using standard formula
  pop.cost.disc <- pop.cost * 1 / (1 + disc.rate) ^ (0:(nsteps - cea.start) / 52)
  pop.qaly.disc <- pop.qaly * 1 / (1 + disc.rate) ^ (0:(nsteps - cea.start) / 52)

  cuml.qaly.disc <- mean(colSums(pop.qaly.disc, na.rm = TRUE))
  cuml.cost.disc <- mean(colSums(pop.cost.disc, na.rm = TRUE))

  return(list(cuml.qaly.disc = cuml.qaly.disc,
              cuml.cost.disc = cuml.cost.disc))
}

cost <- c(calc_outcomes(sim = sim_bl, intervention = FALSE)$cuml.cost.disc,
          calc_outcomes(sim = sim_inter, intervention = TRUE)$cuml.cost.disc)
effect <- c(calc_outcomes(sim = sim_bl, intervention = FALSE)$cuml.qaly.disc,
            calc_outcomes(sim = sim_inter, intervention = TRUE)$cuml.qaly.disc)
strategies <- c("No Intervention", "Universal Prophylaxis")

icer_external <- calculate_icers(cost = cost,
                                 effect = effect,
                                 strategies = strategies)
icer_external

               Strategy    Cost   Effect Inc_Cost Inc_Effect    ICER Status
1       No Intervention 8719279 637.5833       NA         NA      NA     ND
2 Universal Prophylaxis 8866128 661.3223   146849   23.73903 6185.97     ND

Parameters

Transmission

Parameter	Description	Default
`inf.prob`	Per-act transmission probability	0.15
`act.rate`	Acts per partnership per week (built-in default)	1

Vital Dynamics

Parameter	Description	Default
`death.rates`	Age-specific weekly mortality rates (101-element vector)	Three-tier structure (see above)
`arrival.rate`	Per-capita weekly birth rate	`dr / 52`

Cost-Effectiveness

Parameter	Description	Default
`cea.start`	Timestep when cost/QALY tracking begins	14
`end.horizon`	Timestep when main analytic horizon ends	66 (52 + 14)
`disc.rate`	Annual discount rate for costs and QALYs	0.03 (3%)
`sus.cost`	Weekly clinical care cost per susceptible individual ($) \| 150 \| \| `inf.cost` \| Weekly clinical care cost per infected individual ($)	300
`sus.qaly`	Annual QALYs accrued by a susceptible individual	1.00
`inf.qaly`	Annual QALYs accrued by an infected individual	0.75
`age.decrement`	Annual QALY reduction per year of age	-0.003

Intervention

Parameter	Description	Default
`inter.eff`	Proportional reduction in transmission probability	0.50 (50%)
`inter.start`	Timestep when intervention begins	14
`inter.cost`	Total intervention cost ($) over the analytic horizon	500,000

Network

Parameter	Description	Default
Population size	Number of nodes	500
Mean degree	Average concurrent partnerships per sexually active node	0.8
Age assortativity	Mean absolute age difference within partnerships	1.5 years
Partnership duration	Mean edge duration (weeks)	60 (~1.2 years)
Sexual retirement age	Age at which nodes leave the sexual network	65

Module Execution Order

aging -> departures (dfunc) -> arrivals (afunc) -> resim_nets -> infection (ifunc) -> costeffect

Aging runs first so mortality rates and QALY decrements reflect updated ages. Departures follow to remove and retire individuals. Arrivals replace departed nodes with new susceptibles. The network is then resimulated to reflect demographic changes. Infection runs on the updated network. Finally, the cost-effectiveness module tallies costs and QALYs for all living individuals after all state transitions are complete.

Next Steps

Extend the end horizon to run until all individuals have died, fully capturing residual costs and QALYs — the current example truncates for speed
Add probabilistic sensitivity analysis (PSA) by varying key parameters across simulation runs to characterize decision uncertainty
Build on the vital dynamics pattern from the SI with Vital Dynamics example
Compare more than two strategies using dampack::calculate_icers() with multiple intervention scenarios on the efficiency frontier
Add disease staging with stage-specific costs and QALYs — see the HIV model for multi-stage disease progression
